Outdoor Waterproof IP66 SMD LED Street Light

Short Description:

【GOOD QUALITY MATERIAL】Use high-quality die-casting aluminum–ADC12. Provide quality assurance for the les street light housing. Use 4/5mm tempered glass to make the protection level of the fixture to reach IKO9 Class.

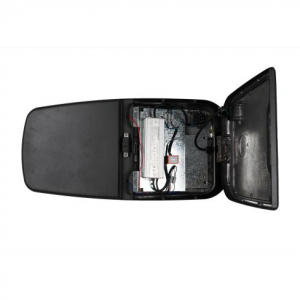

【EASY TO OPERATE】The kind of street light is easy to open. People can open it without any tools. The high precision of the buckle ensures that the lamp can be opened easily.

【HIGH EFFICIENCY】 We can use high efficiency LED 3030/5050 chips, at least its lumen can up to 130lm/w.

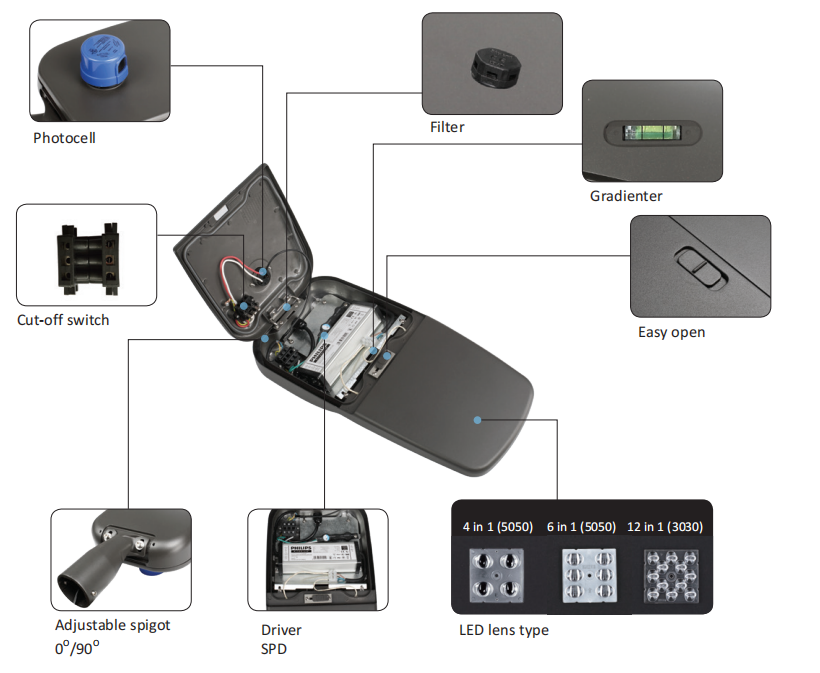

【LIGHT CONTROL】The street light can fix with light control, automatic regulation of light (lighting on at dusk, off and start charging at dawn)

【IP66 WATERPROOF】The street lights with IP66 for waterproof and lightning proof, enabling it to withstand a variety of outdoor environments and weather conditions. Operating temperature: -35℃-50℃.

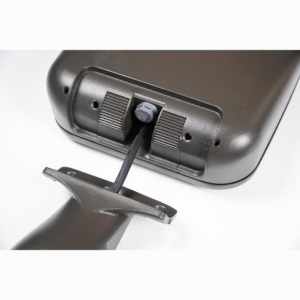

【Adjustable spigot】0/90°

Send email to us

Product Detail

Product Tags

Application

Outdoor wall or pole in Plaza, Park, Garden, Courtyard, Street, Parking Lot, Walkway, Pathway, Campus, Farm, Perimeter Security etc.
Easy to install, waterproof, no pollution, dustproof and durable, high-temperature resistance and long lifespan.

Specifications

Power of Solar Panel:100W
Solar Street Light Work Time: More than 24 hours after fully charged
Color temperature:6500
Charging Time: 6-8 Hours
Material: ABS/ Aluminum
Working Temperature: -30℃-50℃

Notes

1：Solar panel should be placed where can receive maximum sunlight directly.
2：The yard is suitable for multiple solar light.
3：Suitable for installation 120in-150in.
4: Solar panel is 100W, the solar light is 200W .
5：Press the button on the light before use.
6：If you want to test whether the light will work, you could use something to cover the solar panel. Then press the ON/OFF button, see if the light are bright.

Product Description

Product Code	BTLED-1803
Material	Diecasting aluminum
Wattage	A: 120W-200W B: 80W-120W C: 20W-60W
LED chip brand	LUMILEDS/CREE/Bridgelux
Driver Brand	MW、PHILIPS、INVENTRONICS、MOSO
Power Factor	＞0.95
Voltage Range	90V-305V
Surge Protection	10KV/20KV
Working temprature	-40~60℃
IP rating	IP66
IK rating	≥IK08
Insulation Class	Class I / II
CCT	3000-6500K
Lifetime	50000 hours
Photocell base	with
Cut-off switch	with
Packing Size	A: 870x370x180mm B: 750x310x150mm C: 640x250x145mm
Installation Spigot	60/50mm
