TECHNICAL
| Technical | |||

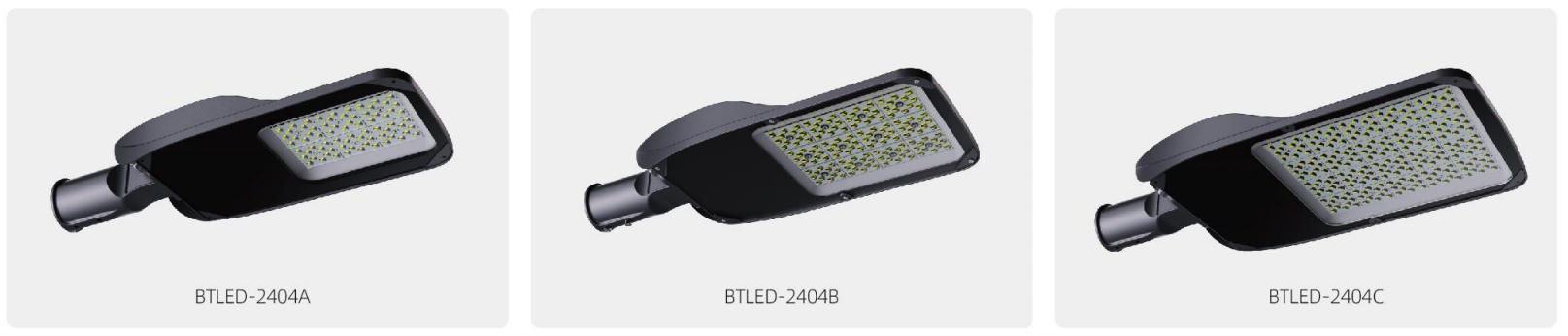

| Model | BTLED-2404A | BTLED-2404B | BTLED-2404C |
| Power | 60W | 120W | 200W |
| INPUT VOLTAGE | AC100-277V | ||
| Frequency range | 50Hz/60Hz | ||
| Power factor | >0.95 | ||
| Efficiency | 180Lm/W | ||
| Lifetime | 50000H | ||
| CRI | CRI70 | ||
| CCT | 2200K-6500K | ||
| IP | IP66 | ||
| IK | IK09 | ||
| Working temperature | -30~+50℃ | ||
| Storage temperature | -20℃~60℃.10%~90%RH | ||
| Lens Material | PC Lens | ||
| Installation height | 6-8m | 8-10m | 10-12m |
General highlights

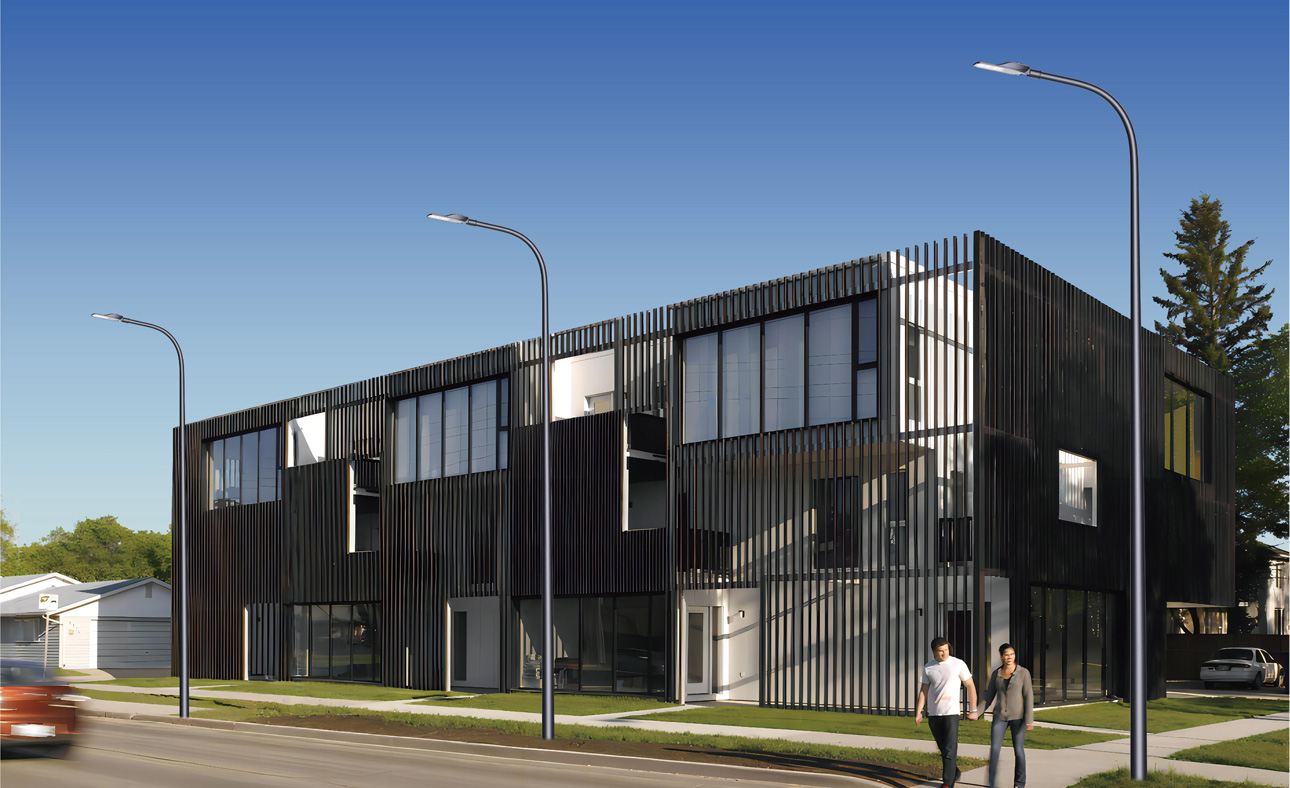

Used for any outdoor lighting places such as roads, squares,scenic spots, etc
Working temperature: -30° C/+50 ° C
Adopting buckle design for easy installation and maintenance
Using high-quality chips
Less light decay, long-lasting and durable
The sleeve adopts a clamping design
Lamp poles with different calibers
Excellent heat dissipation
Optical properties
Different lens arrangements in different areas and installation areas
Uniform light distribution
Modular design of light source for easy replacement
Lumen output (absolute metering): 10800lm-36000lm
Color temperature: 2200K-6500K
Color rendering index:>70
Shell and Finish
Corrosion resistant die cast aluminum casing
Electrostatic powder coating
Protection level: IP66
Impact protection: IK09

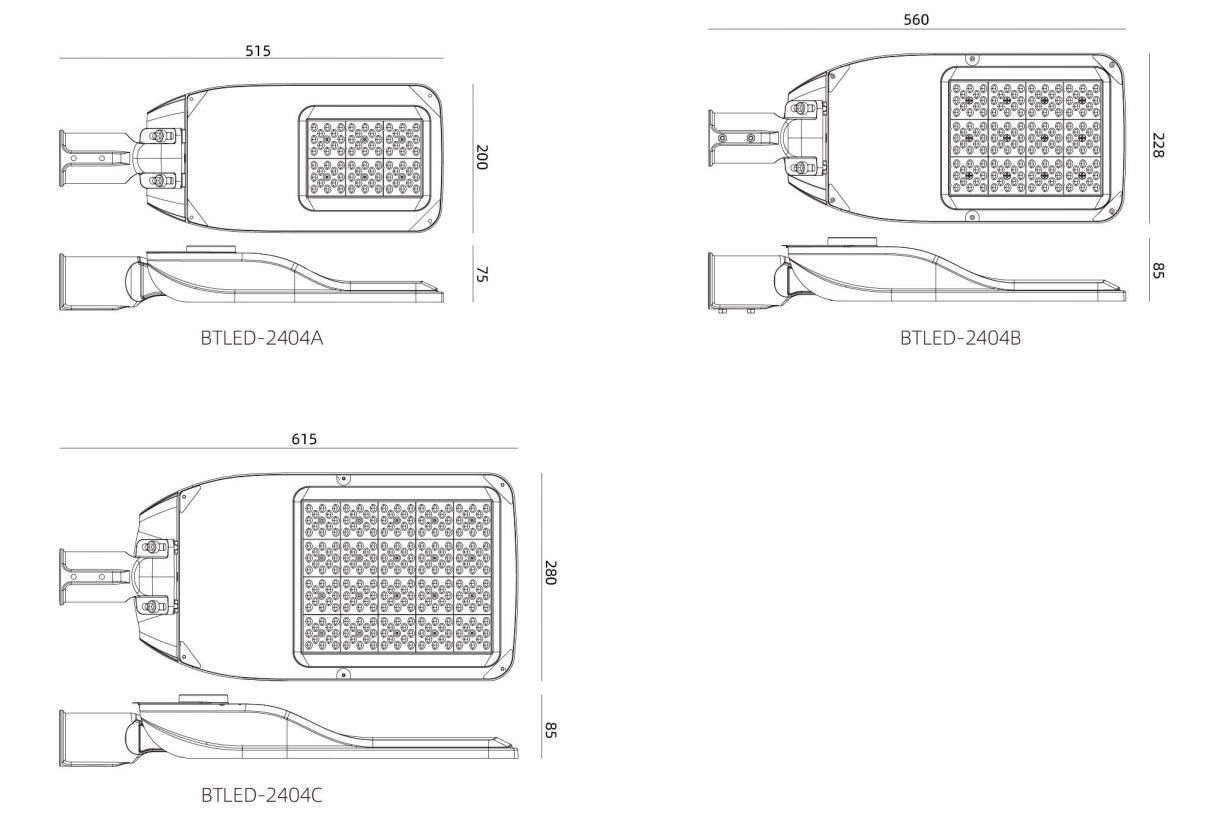

SIZE

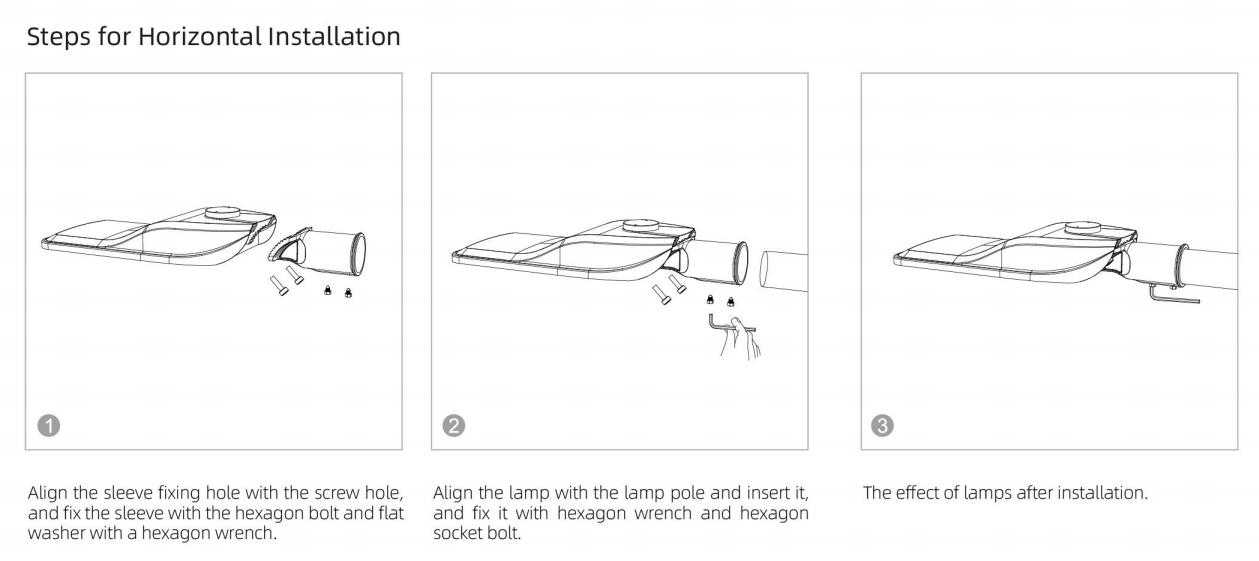

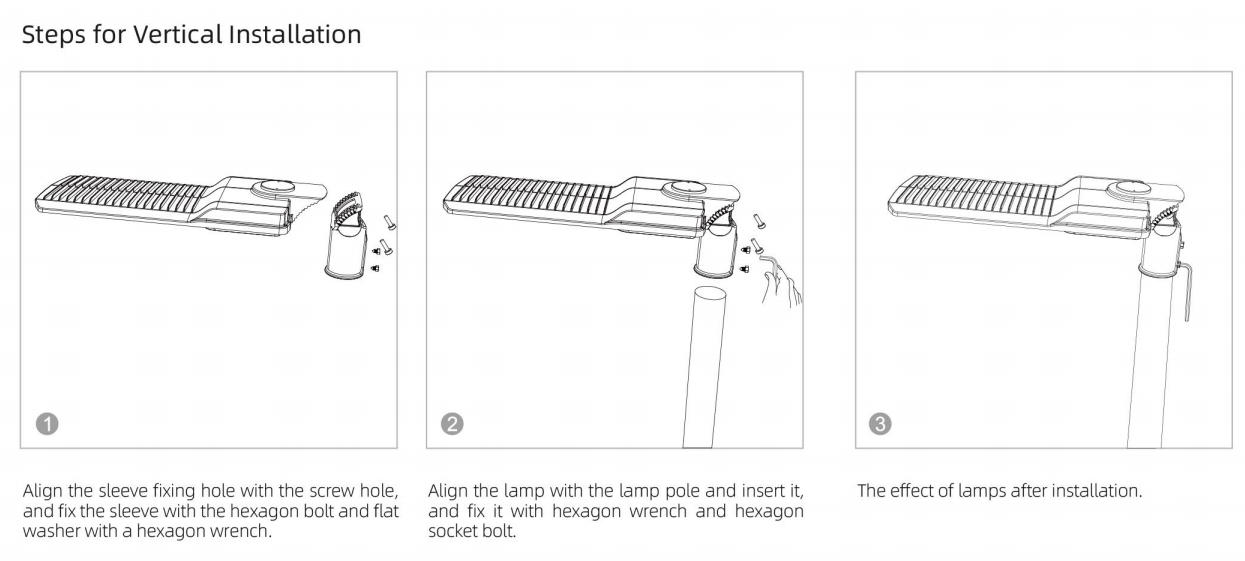

INSTALLATION INSTRUCTIONS
