TECHNICAL SPECIFICATIONS
| Model | BTLED-SL-2403-100W | BTLED-SL-2403-80W | BTLED-SL-2403-60W | BTLED-SL-2403-50W | BTLED-SL-2403-40W | BTLED-SL-2403-30W |
| Solar panel power | 120W | 110W | 80W | 70W | 60W | 60W |
| LENS QTY. (MAX) | 4PCS | 3PCS | 3PCS | 2PCS | 2PCS | 1PCS |
| Lithium battery | 25.6V/36AH | 25.6V/24AH | 12.8V/30AH | 12.8V/30AH | 12.8V/24AH | 12.8V/24AH |
| Luminous Flux | 15000LM | 12000LM | 9000LM | 7500LM | 6000LM | 4500LM |
| Lifespan of LED | More Than 50.000 Hours | |||||
| Color Temperature | 3000K~6500K | |||||
| Discharging Time | 12h(100%power),3óh(energy saving mode) | |||||
| Charing Time | 6-10 hours at sunny day | |||||
| Material | Diecasting alu.body | |||||
| Mounted Diameter | 60~76mm | |||||
| Mounting Height | 4~6m | 6~8m |
| CRI. | ≥70 | |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V | |
| Working Temperature | -20℃~50℃ | |
| lifetime | >50000 hours | |
| IP class | IP65 | |
| IK class | IK08 | |
| Mounting Space | 15~30m | |||||
| Product Size | 1380×510x60mm | 1340x510x60mm | 940x510x60mm | 980x460x60mm | 980x425x60mm | 980x425x60mm |

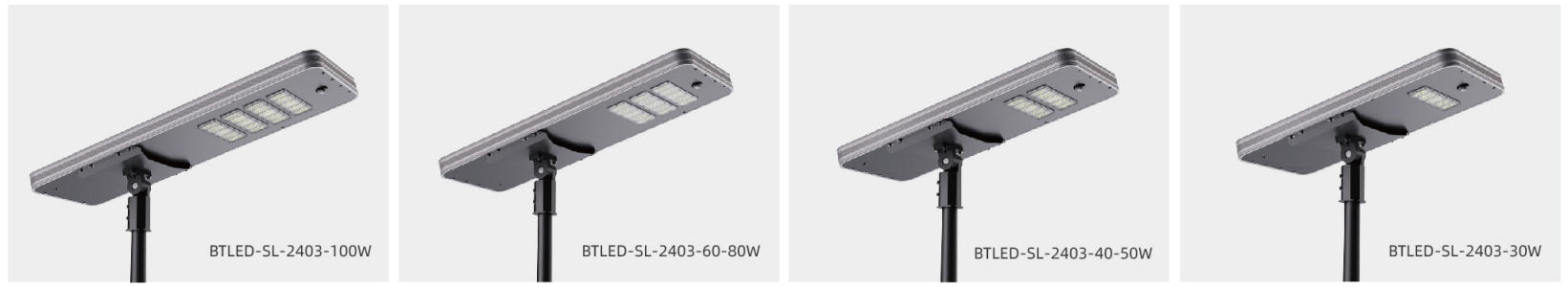

MULTI ANGLE DISPLAY

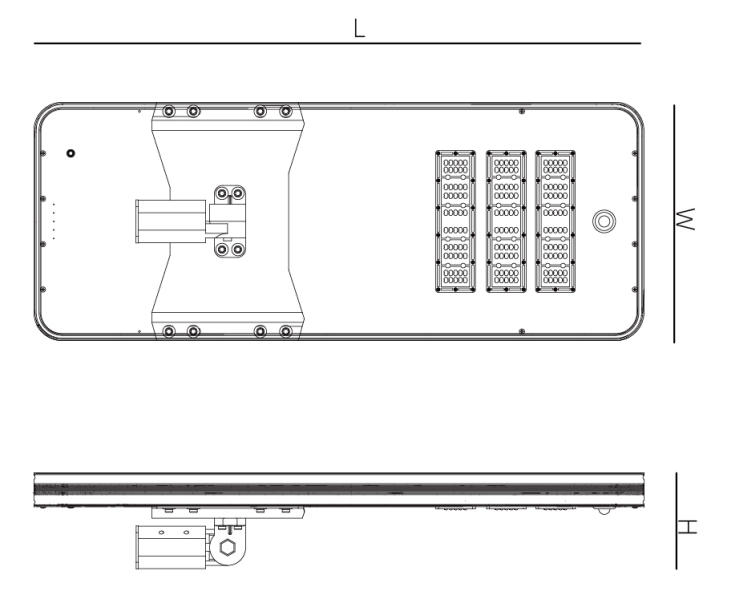

PRODUCT SIZE
| Model | BTLED-SL-2403-100W | BTLED-SL-2403-80W | BTLED-SL-2403-60W | BTLED-SL-2403-50W | BTLED-SL-2403-40W | BTLED-SL-2403-30W |
| L | 1380mm | 1340mm | 940mm | 980mm | 980mm | 980mm |
| W | 510mm | 510mm | 510mm | 460mm | 425mm | 425mm |
| H | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm |
| EMPTY HOUSING N.W. | 26kg | 24kg | 20kg | 16kg | 14kg | 12kg |

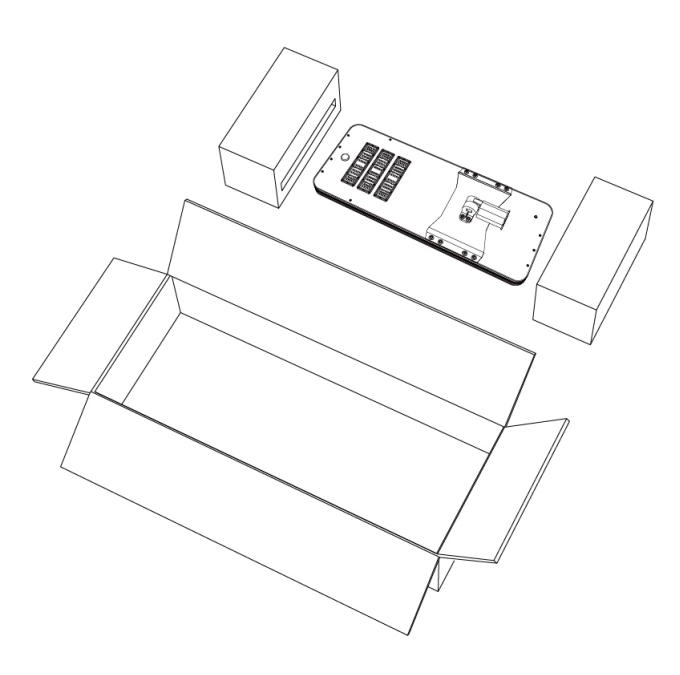

| Packing information | BTLED-SL-2403-100W | BTLED-SL-2403-180W | BTLED-SL-2403-60W | BTLED-SL-2403-50W | BTLED-SL-2403-40W | BTLED-SL-2403-30W |
| L | 1480mm | 1435mm | 1020mm | 1090mm | 1090mm | 1090mm |
| W | 620mm | 620mm | 620mm | 550mm | 515mm | 515mm |
| H | 210mm | 210mm | 210mm | 200mm | 200mm | 200mm |
| N.W. | 36kg | 32kg | 29kg | 19kg | 16kg | 14kg |
| 20GP/40HQ quantity | 150PCS/350PCS | 160PCS/380PCS | 210PCS/500PCS | 230PCS/570PCS | 250PCS/610PCS | 250PCS/610PCS |

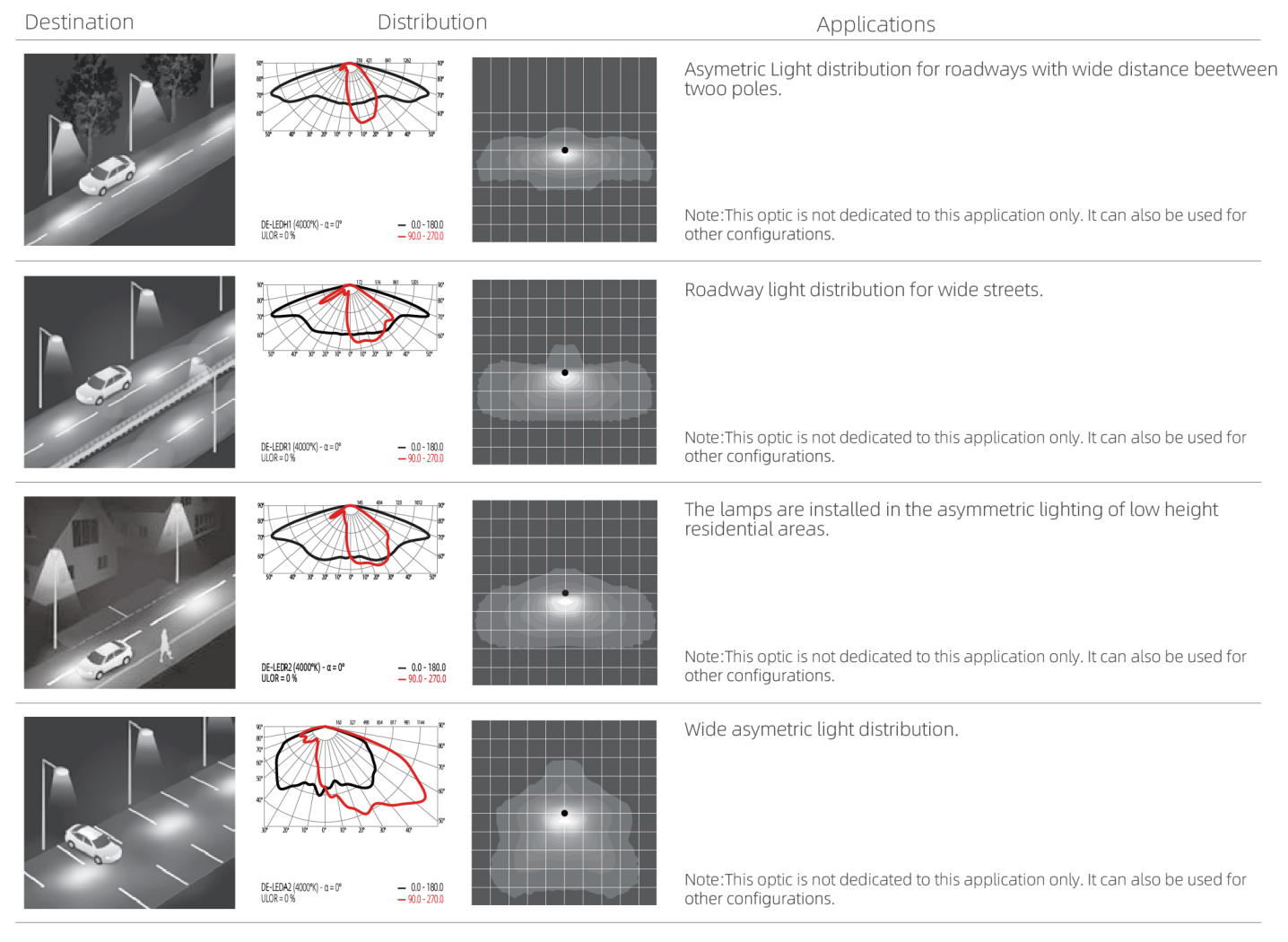

Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.
