TECHNICAL SPECIFICATIONS
| Model | BTLED-SL-2308 |
| LED | 15W |
| Solar Panell | 9V/30W Monocrystalline Solar Panel,Grade A |
| Lifespan of LED | More Than 50,000 Hours |
| Luminous Flux | around 2000LM |
| Color Temperature | 3000K-6500K |
| Beam Angle | 360 degree |
| Lithium batery | 6.4V/18-24AH |
| Discharging Time | 12h(100%power),36h(energy saving mode) |
| Charing Time | 6-8 hours at sunny day |
| Material | diecasting aluminum body |
| Working Temperature | -20C-55℃ |
| Mounting Height | 2.5~4m pole |
| Mounting Space | 10~20m |
| Product Size | 576×240mm |
| IP class | IP65 |
| IK class | IK08 |
| Control Mode | light and time control(without sensor) |
| Mounted Diameter | 60-76mm pole |

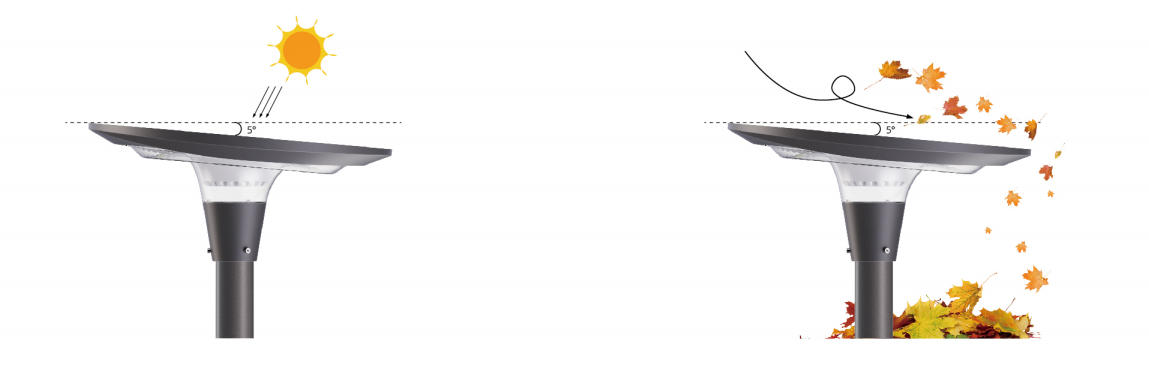

SLOPE DESIGN
The 5 degree slope design not only makes the appearance beautiful and unique;Inclined Sunrise can obtain higher charging efficiency, which is at least 15% higher than the level;At the same time, the slope design of the solar panelis not easy to accumulate dust, which can be washed away by rain,It not only has higher power generation but also is easier to maintain.

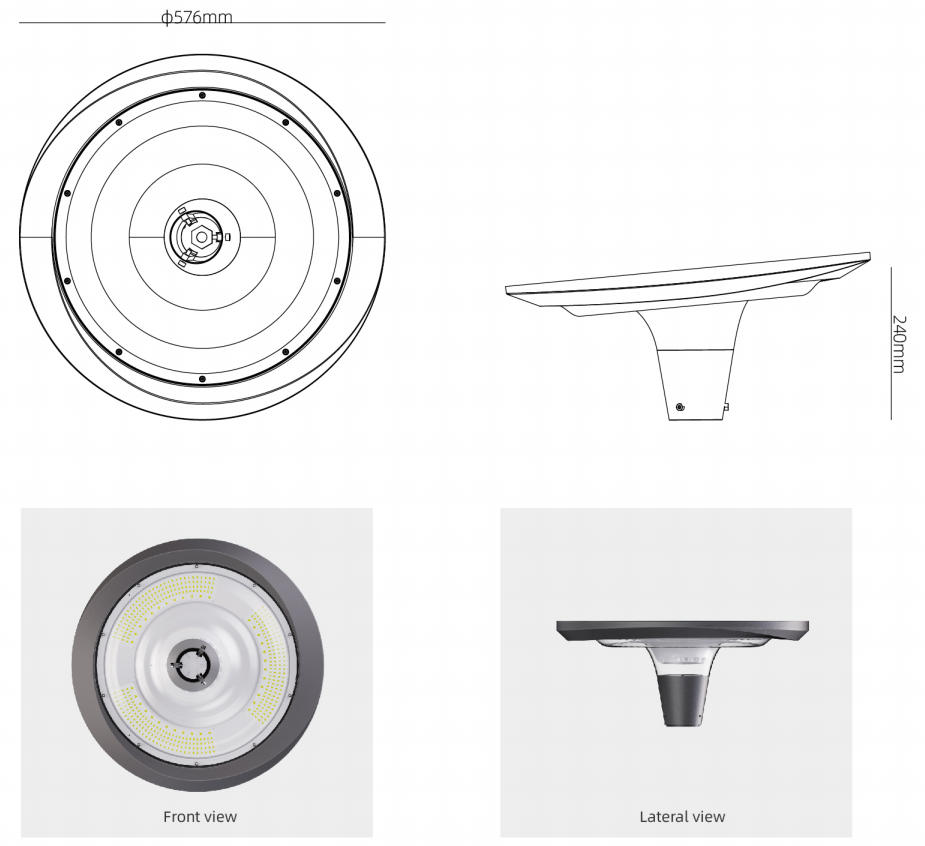

PRODUCT SIZE
| Model | BTLED-SL-2308 |
| Product size | 576x576×240mm |
| Packing information | 586x586x250mm |
| EMPTY HOUSING N.W. | 3kg |
| EMPTY HOUSING G.W. | 4kg |
| N.W.for Full Set | 5kg |
| G.W.for Full Set | 6kg |
| 20GP/40HQ quantity | 310PCS/775PCS |
