TECHNICAL SPECIFICATIONS
| Model | BTLED-G2304 |
| Power | 20W-100W |
| 50*50mm LENS QTY. (MAX) | 16PCS |
| LED Chip | 3030/5050 |
| Average lumens | around 130LM/W |
| Chip brand | PHILIPS/CREE/Bridgelux |
| Driver | MW/PHILIPS/Inventronics |
| Power factor | >0.95 |
| Voltage | AC 90V-305V |
| SPD | 10KV/20KV |
| Insulation class | Class I/II |
| CCT. | 3000-6500k |
| CRI. | ≥70 |
| Optical lens | PC lens for Type-1/II/Ⅲ/IV/V |
| Working Temperature | -40C～+50C |
| lifetime | >50000 hours |
| IP class | IP66 |
| IK class | IK09 |
| Body Material | Diecasting aluminium |
| Installation spigot | 76mm |

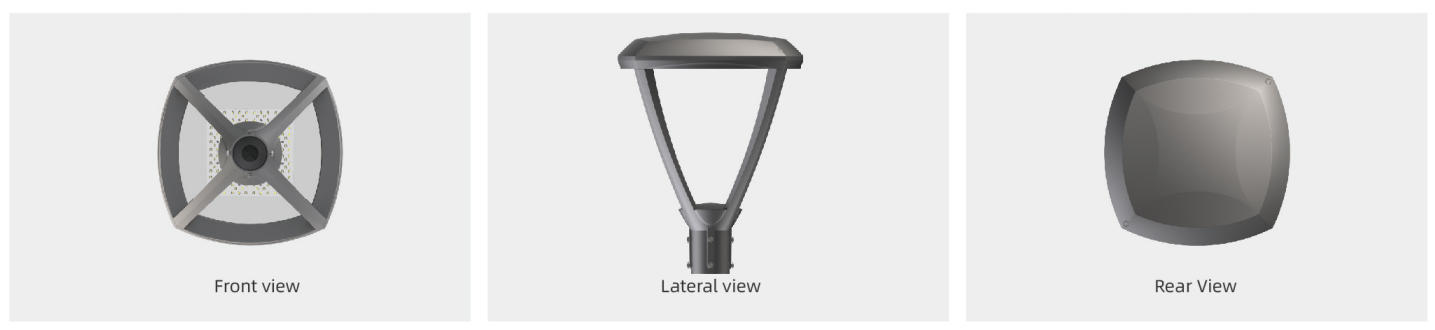

MULTI ANGLE DISPLAY

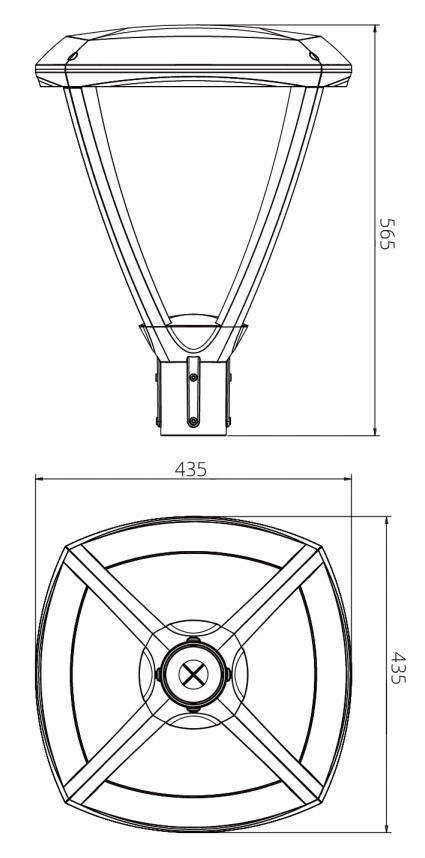

PRODUCT SIZE
| Model | BTLED-G2304 |
| Product size | 435x435×565mm |
| Packing information | 550x445×170mm |
| N.W.for Full Set | 8.5kg |
| G.W.for Full Set | 9.4kg |
| EMPTY HOUSING N.W. | 7kg |
| EMPTY HOUSING G.W. | 7.9kg |
| 20GP/40HQ quantity | 700PCS/1700PCS |
