TECHNICAL SPECIFICATIONS
| Model | BTLED-G2504A | BTLED-G2504B |
| Power | 30W-150W | 30W-150W |
| Average lumens | around 140LM/W | around 140LM/W |
| LED Chip | 3030/5050 LED Chip | |
| Chip brand | LUMILEDS/CREE/SAN'AN | |
| Driver | MW/PHILIPS/Inventronics/SOSEN | |
| Power factor | >0.95 | |
| Voltage | AC 90V-305V | |
| SPD | 10KV/20KV | |
| Insulation class | Class I/II | |
| CCT. | 3000-6500k |
| CRI. | ≥70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35℃~+50℃ |
| lifetime | >50000 hours |
| IP class | IP66 |
| IK class | IK09 |
Body Material | Diecasting aluminium | |
| Installation spigot | G3/4 and 32MM | 60/76mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

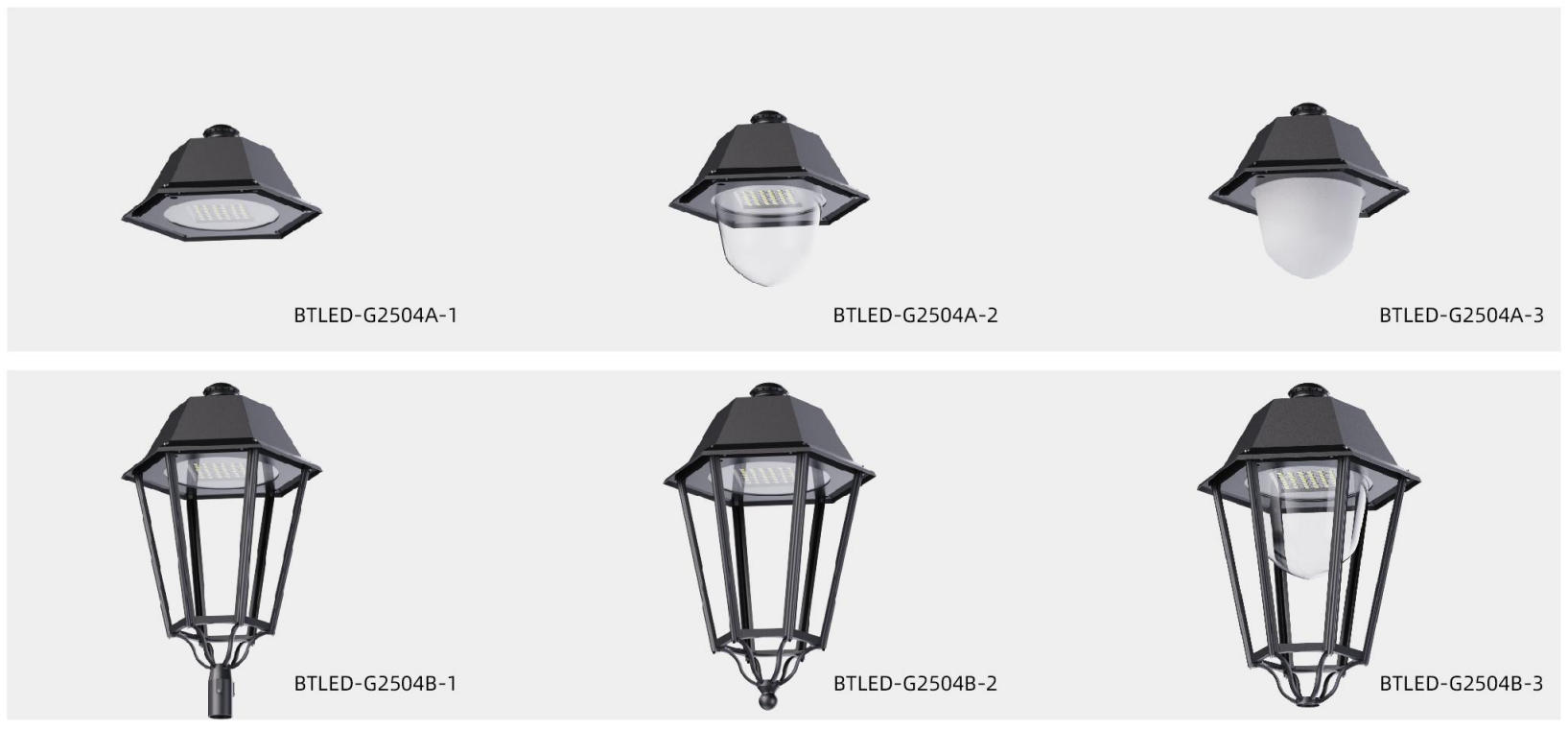

SERIES DISPLAY

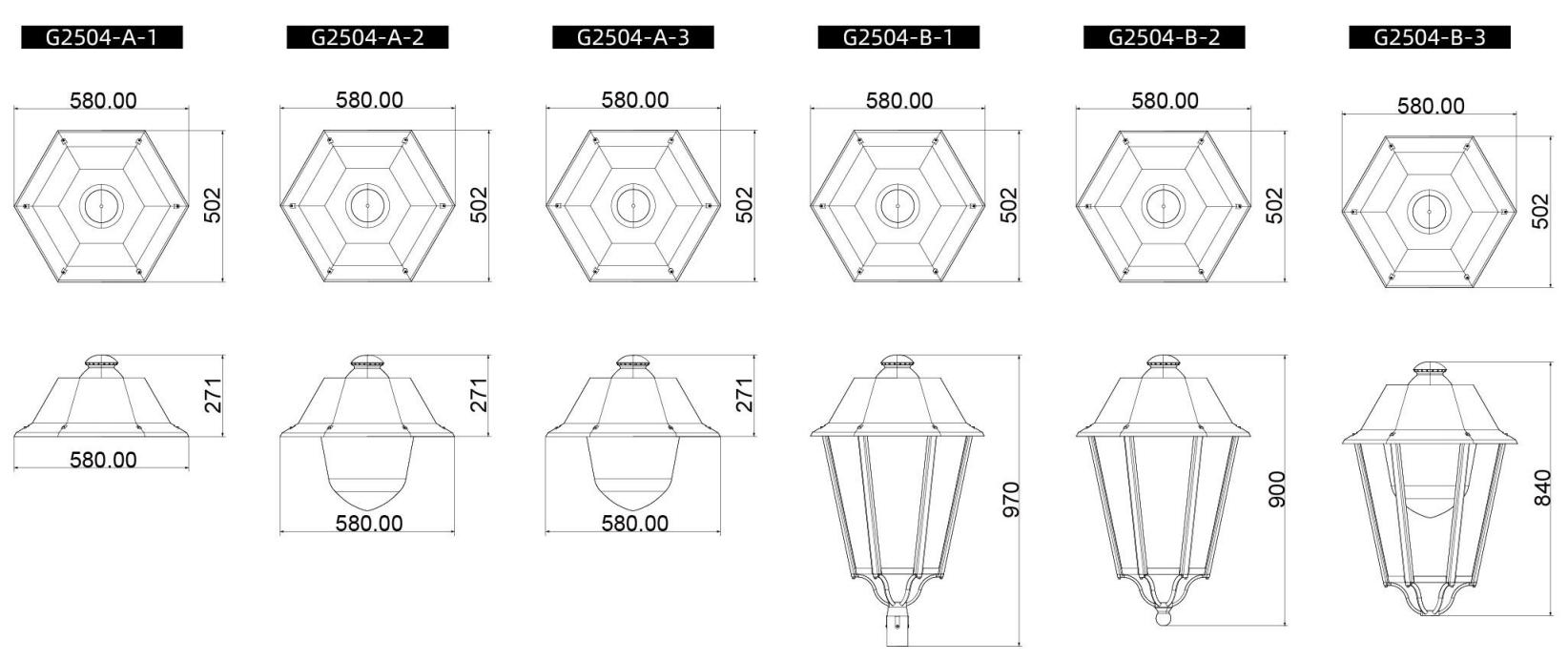

PRODUCT SIZE
| Model | BTLED-G2504A | BTLED-G2504B |
| Product size | 580*580*271mm(no diffuser) | 580*580*970mm(60MM BASE) |
| Packing information | 600*600*300mm(no diffuser) | 600*600*350mm(60MM BASE) |
| EMPTY HOUSING N.W. | 4.5kg | 6.5kg |
| EMPTY HOUSING G.W. | 5.5kg | 7.5kg |
| N.W.for Full Set | 5.5kg | 7.5kg |
| G.W.for Full Set | 6.5kg | 8.5kg |
| 20GP/40HQ quantity | 260PCS/620PCS | 220PCS/520PCS |
