TECHNICAL SPECIFICATIONS
| Model | BTLED-G4006A | BTLED-G4006B |
| Power | 40W-80W | 20W-60W |
| LED Chip | Light source module | |
| Average lumens | 100LM/W | |
| Chip brand | LUMILEDS/CREE/SAN'AN | |
| Driver | MW/INVENTRONICS/MOSo | |
| Power factor | >0.95 | |
| Voltage | 90-305V | |
| SPD | 10KV/20KV | |
| Insulation class | Class I/Il | |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/I/Ⅲ/IV/V |
| Working Temperature | -35°C to +50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting aluminium |
| Installation spigot | 76/60mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

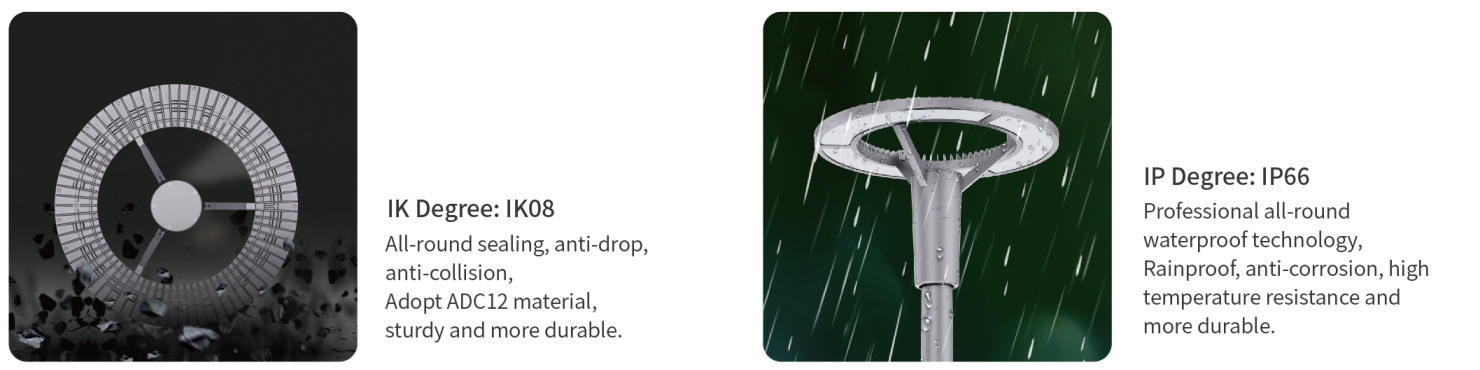

PROTECTION LEVEL

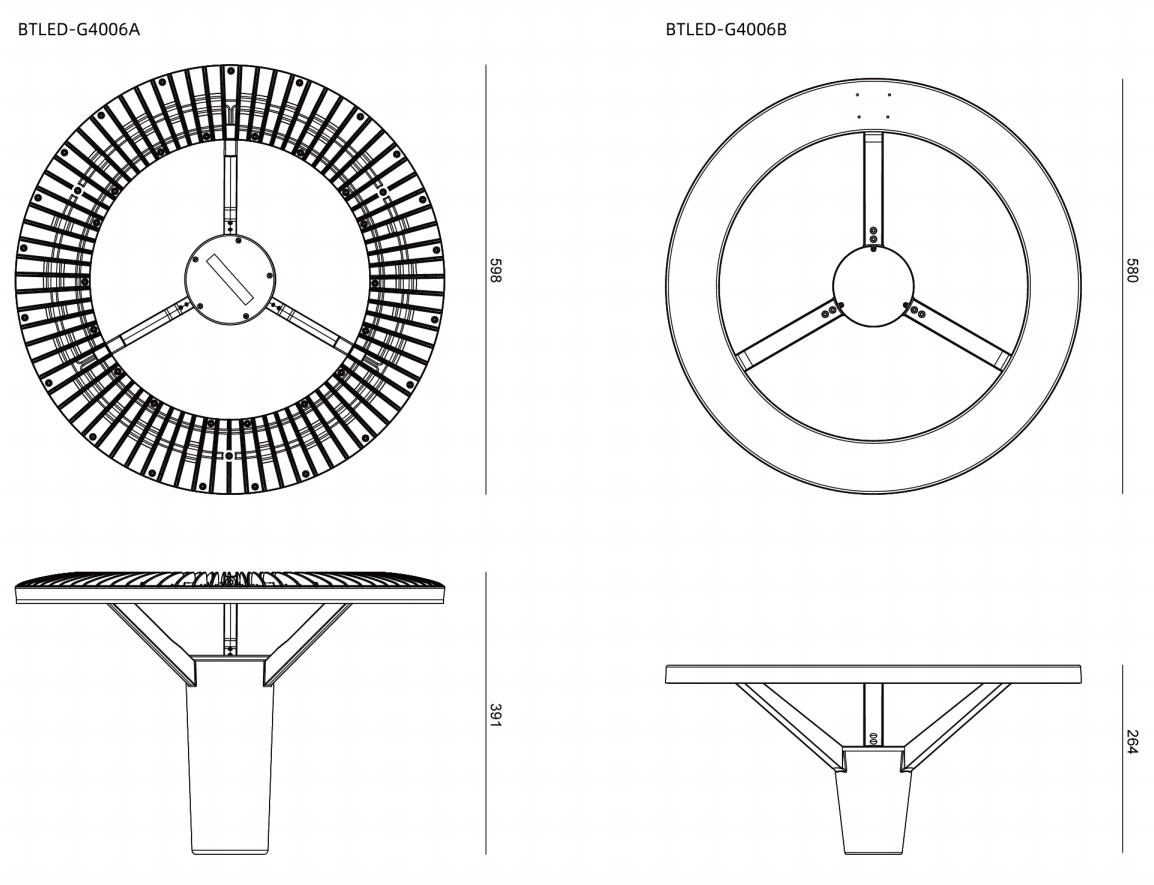

PRODUCT SIZE
| Model | BTLED-G4006A | BTLED-G4006B |
| Product size | φ598x391mm | φ580×264mm |
| Packing information | 610x610x420mm | 590×590×290mm |
| N.W.FOR EMPTY HOUSING | 6kg | 3.5kg |
| G.W.FOR EMPTY HOUSING | 7.3kg | 4.5kg |
| N.W.FOR FULL SET | 7.2kg | 4.8kg |
| G.W.FOR FULL SET | 8.5kg | 5.8kg |
| 20GP/40HQ quantity | 170PCS/420PCS | 280PCS/660PCS |
