SPECIFICATION
· ADC12 die casting aluminum body, support 40-100 watts
· Super white tempered glass, adopt modular light distributionlens and alltypes beam angles
· UV-resistance and anti-corrsion coating, it can be used in coastal areas
· Using high quality LED chips, the light efficiency is more than 150lm/W
· Mounting pole is o60mm or o76mm
· Protective grades are IP66/IK10

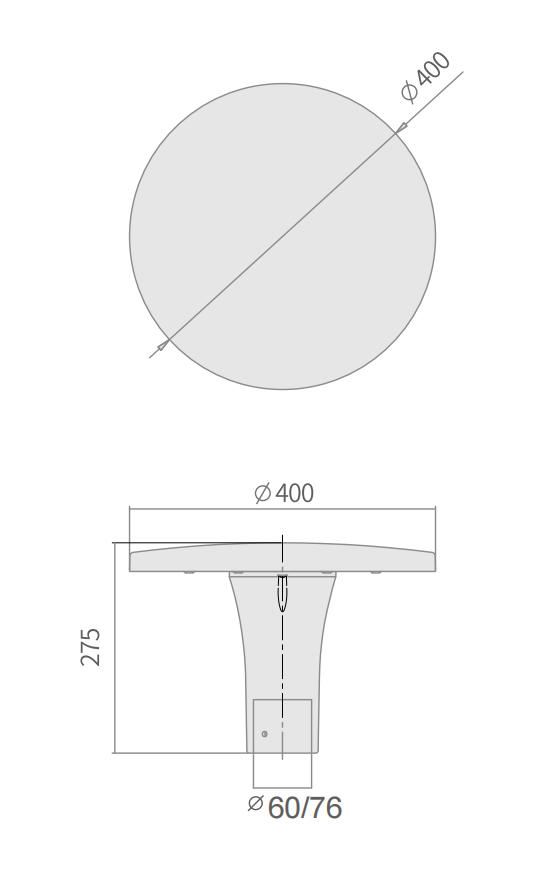

DIMENSIONS

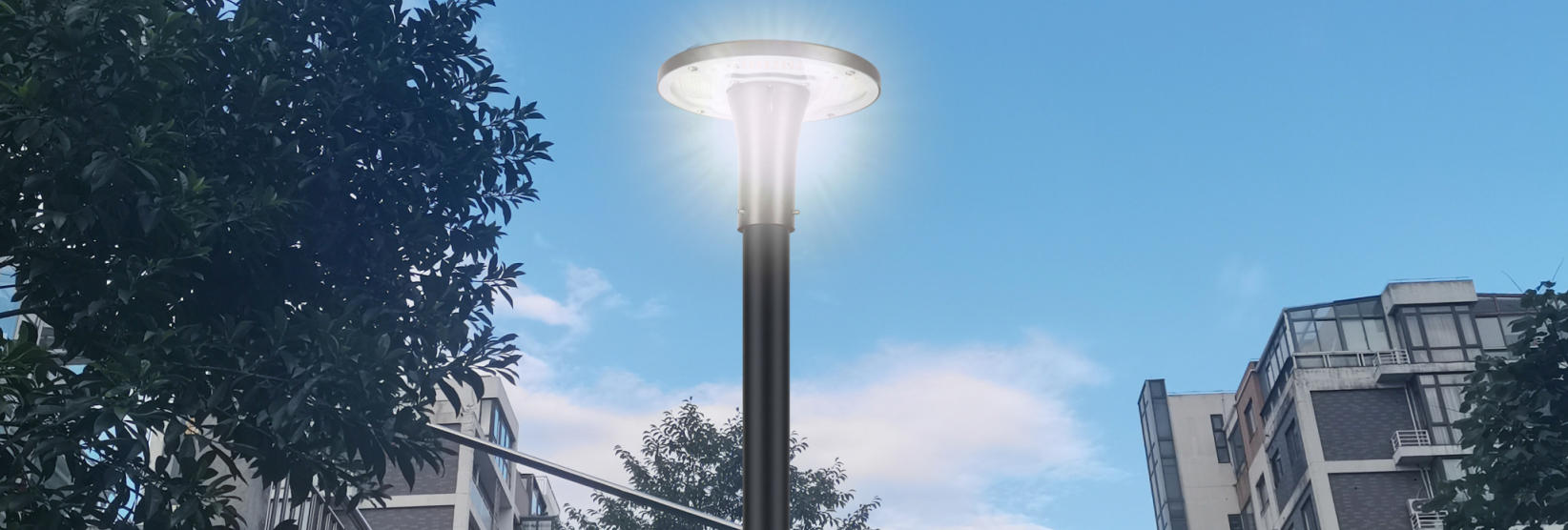

APPLICATION

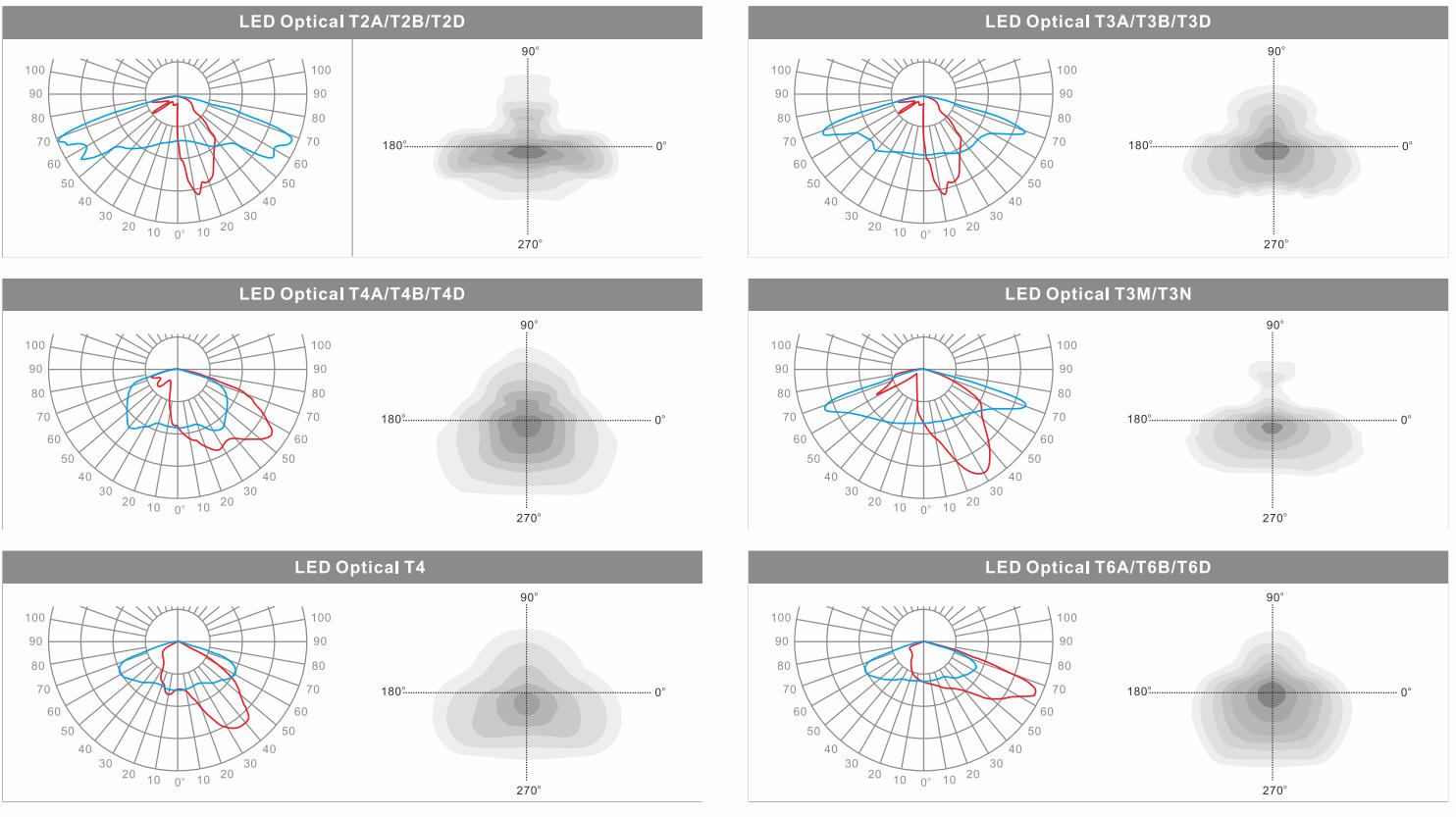

OPTICAL APPLICATION
TECHNICAL DATA
| Model Number | Power | LED Source | LED Quantity | Color Temperature | CRI | Input Voltage | Luminous Flux | Protective Grade |
| BTLED-G2503 | 40W | 3030/5050 | 72PCS/16PCS | 2700K-5700K | 70/80 | AC85-305V | >150lm/N | IP66/IK10 |
| BTLED-G2503 | 60W | 3030/5050 | 96PCS/24PCS | 2700K-5700K | 70/80 | AC85-305V | >150lm/NV | IP66/IK10 |
| BTLED-G2503 | 80W | 3030/5050 | 144PCS/32PCS | 2700K-5700K | 70/80 | AC85-305V | >150lm/W | IP66/K10 |
| BTLED-G2503 | 100W | 3030/5050 | 160PCS/36PCS | 2700K-5700K | 70/80 | AC85-305V | >150lm/NV | IP66/IK10 |
