TECHNICAL SPECIFICATIONS
| Nodel | BTLED-G2501-A | BTLED-G2501-B |
| Rated power | 40W-100W | 40W-100W |
| Input voltage | 100-305V AC | 100-305V AC |
| Frequency range | 50/60Hz | 50/60Hz |
| Power factor | >0.95 | >0.95 |
| Type of light source | LUMILEDS/CREE | LUMILEDS/CREE |
| Luminous effect of lamps | 150lm/W | 150lm/W |
| Color temperature | 3000K-6000K | 3000K-6000K |
| Color rendering index | CRI>70 | CRI>70 |
| Operating temperature | -35℃~50℃ | -35℃~50℃ |
| Working humidity | 10%-90% | 10%-90% |
| LED life | >50000H | >50000H |
| IIK grade | IK09 | IK09 |
| IP grade | IP66 | IP66 |
| Installation height | 4-6m | 4-6m |
| Product weight | 5.8kg | 5.7kg |
| Package dimensions | φ500×484mm | φ500×546mm |
| Nodel | BTLED-G2501-C |
| Rated power | 40W-100W |
| Input voltage | 100-305V AC |
| Frequency range | 50/60Hz |
| Power factor | >0.95 |
| Type of light source | LUMILEDS/CREE |
| Luminous effect of lamps | 150lm/W |
| Color temperature | 3000K-6000K |
| Color rendering index | CRI>70 |
| Operating temperature | -35℃~50℃ |
| Working humidity | 10%-90% |
| LED life | >5000OH |
| IIK grade | IK09 |
| IP grade | IP66 |
| Installation height | 4-6m |
| Product weight | 6.6kg |
| Package dimensions | φ500×298mm |
| Nodel | BTLED-G2501-E |
| Rated power | 40W-100W |
| Input voltage | 100-305V AC |
| Frequency range | 50/60Hz |
| Power factor | >0.95 |
| Type of light source | LUMILEDS/CREE |
| Luminous effect of lamps | 150lm/W |
| Color temperature | 3000K-6000K |
| Color rendering index | CRI>70 |
| Operating temperature | -35℃~50℃ |
| Working humidity | 10%-90% |
| LED life | >50000H |
| IK grade | IK09 |
| IP grade | IP66 |
| Installation height | 4-6m |
| Product weight | 6.7kg |
| Package dimensions | 670x500x120mm |
| Nodel | BTLED-G2501-F |
| Rated power | 40W-100W |
| Input voltage | 100-305V AC |
| Frequency range | 50/60Hz |
| Power factor | >0.95 |
| Type of light source | LUMILEDS/CREE |
| Luminous effect of lamps | 150lm/W |
| Color temperature | 3000K-6000K |
| Color rendering index | CRI>70 |
| Operating temperature | -35℃~50℃ |
| Working humidity | 10%-90% |
| LED life | >50000H |
| IIK grade | IK09 |
| IP grade | IP66 |
| Installation height | 6-12m |
| Product weight | 6.8kg |
| Package dimensions | φ500×138mm |

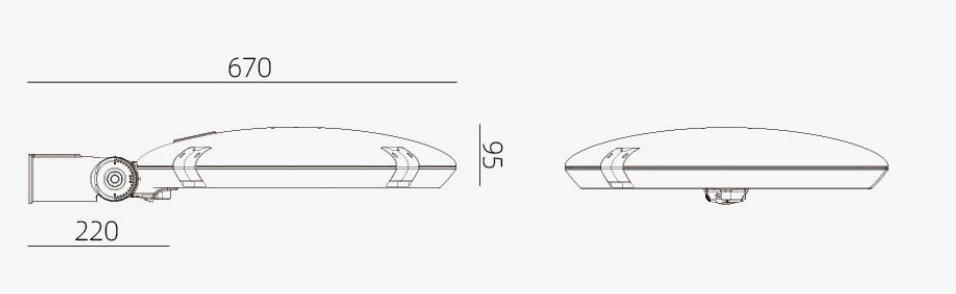

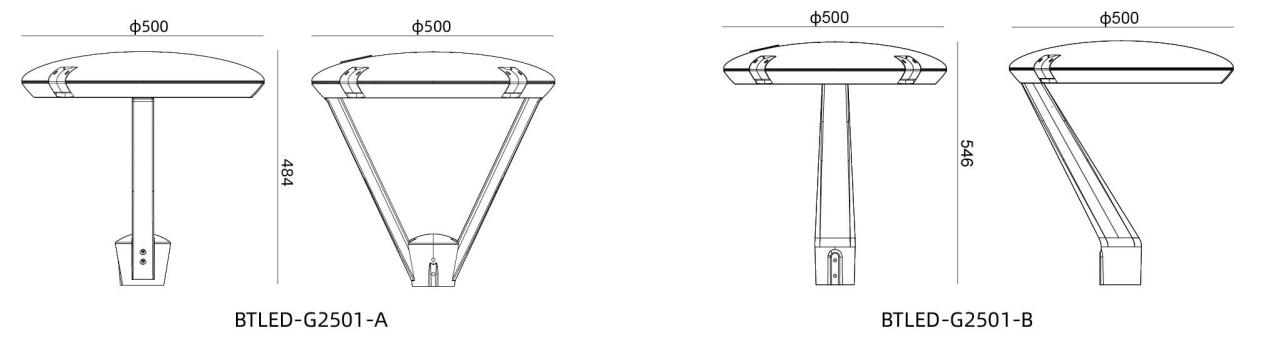

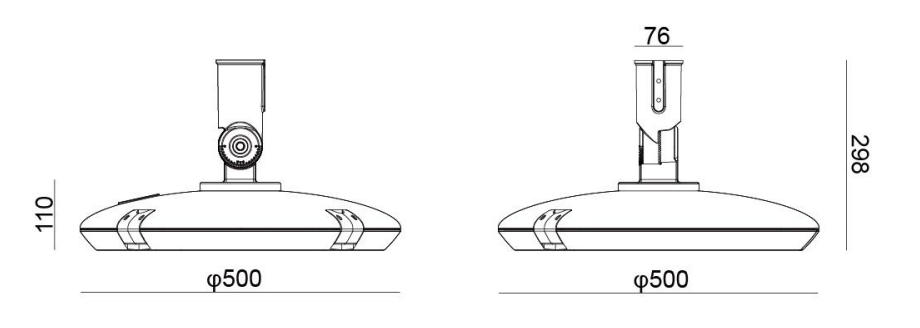

PRODUCT SIZE
