TECHNICAL SPECIFICATIONS
| Model | BTLED-SL-S2402-A | BTLED-SL-S2402-B | BTLED-SL-S2402-C | BTLED-SL-S2402-D |
| Power | 120W | 100W | 60W | 40W |
| Solar Panell | 140W | 110W | 85W | 75W |
| LED | 5PCS | 4PCS | 3PCS | 2PCS |
| Lithium battery | 25.6V/45AH | 25.6V/30AH | 12.8V/45AH | 12.8V/30AH |
| Luminous Flux | 18000LM | 15000LM | 9000LM | 6000LM |
| Lifespan of LED | More Than 50.000 Hours | |||
| Color Temperature | 3000K~6500K | |||
| Beam Angle | TYPEI(70*140°) | |||
| Discharging Time | 12h(100%power),3óh(energy saving mode) | |||
| Charing Time | 6-10 hours at sunny day | |||
| Material | Diecasting alu.body | |||
| Mounted Diameter | 60~76mm | |||
| Mounting Height | 10~12m | 10~12m | 7~8m | 6~7m |
| CRI. | ≥70 | |||
| Optical lens | PC lens for Type-I/IⅡ/Ⅲ/IV/V | |||
| Working Temperature | -20C～50℃ | |||
| lifetime | >50000 hours | |||
| IP class | IP66 | |||
| IK class | IK08 | |||
| Mounting Space | 15~30m | |||
| Product Size | 1666×417×225mm | 1446×417×225mm | 1131×417×225mm | 926×417×225mm |

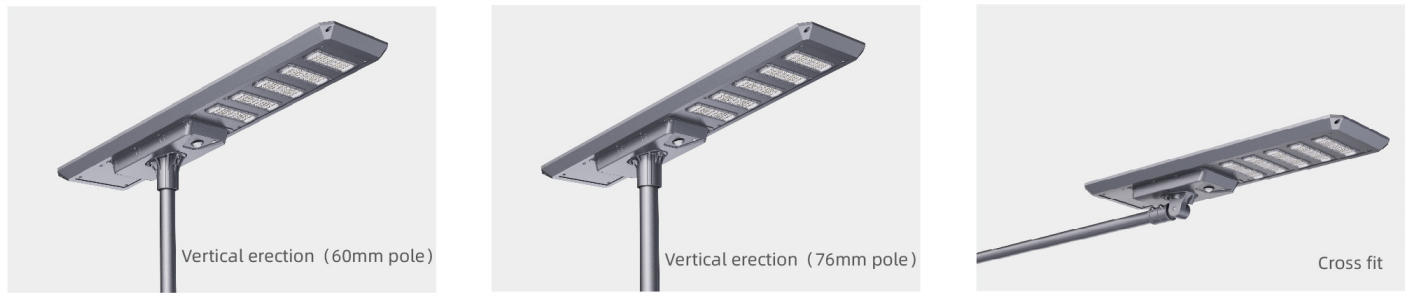

INSTALLATION METHOD
The luminaire adopts horizontal and vertical installation, and supports angle adjustment which can be adusted according to differentlighting environment to meet different lighting needs.

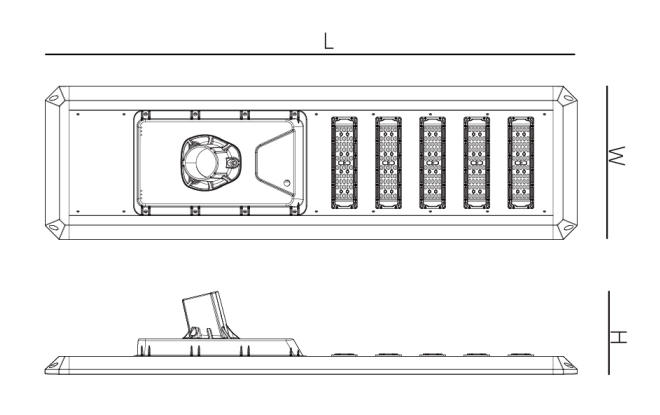

PRODUCT SIZE
| Model | BTLED-SL-S2402-A | BTLED-SL-S2402-B | BTLED-SL-S2402-C | BTLED-SL-S2402-D |
| L | 1666mm | 1446mm | 1131mm | 926mm |
| W | 417mm | 417mm | 417mm | 417mm |
| H | 225mm | 225mm | 225mm | 225mm |
| EMPTY HOUSING N.W. | 15.0kg | 13.0kg | 11.5kg | 10kg |
| EMPTY HOUSING G.W. | 18.0kg | 15.5kg | 14kg | 12kg |

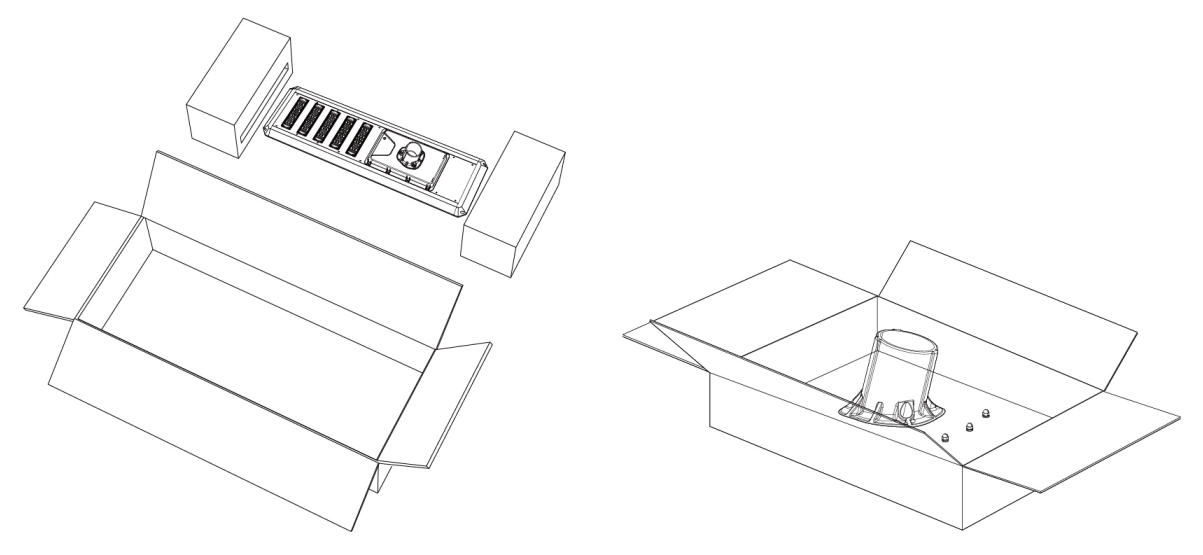

| Packing information | BTLED-SL-S2402-A | BTLED-SL-S2402-B | BTLED-SL-S2402-C | BTLED-SL-S2402-D |
| L | 1760mm | 1540mm | 1230mm | 1020mm |
| W | 500mm | 500mm | 500mm | 500mm |
| H | 200mm | 200mm | 200mm | 200mm |
| N.W. | 22kg | 18kg | 15kg | 12kg |
| G.W. | 25kg | 20.5kg | 17.5kg | 14Kg |
| 20GP/40HQ quantity | 150PCS/380PCS | 180PCS/440PCS | 220PCS/550PCS | 280PCS/660PCS |

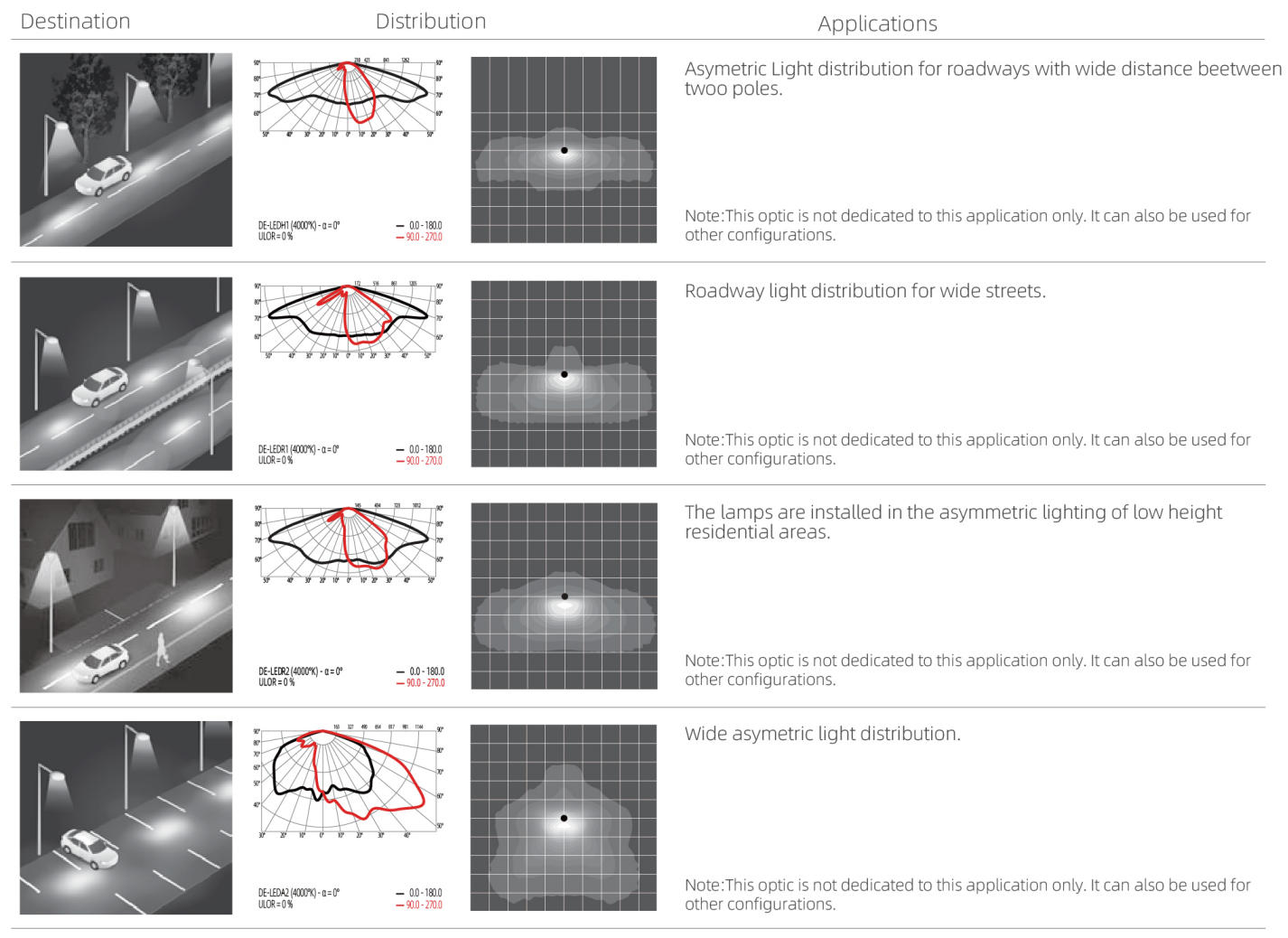

Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.
