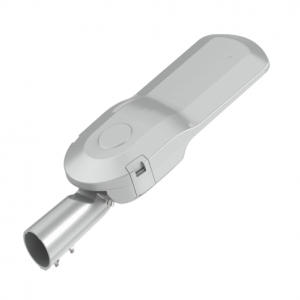

2022 New type Led Street Light with 5 dimension
Product Description
|
Product Code |
BTLED-2202 |
|
Material |
Diecasting aluminum |
|
Wattage |

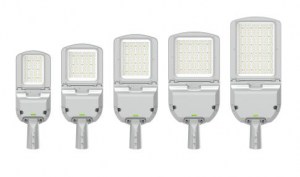

A: 300W-320WB: 200W-250W
C：150W-180W D：80W-120W E: 25W-60W |
|
LED chip brand |
LUMILEDS/CREE/Bridgelux |
|
Driver Brand |
MW、PHILIPS、INVENTRONICS、MOSO |
|
Power Factor |
＞0.95 |
|
Voltage Range |
90V-305V |
|
Surge Protection |
10KV/20KV |
|
Working temprature |
-40~60℃ |
|
IP rating |
IP66 |
|
IK rating |
≥IK08 |
|
Insulation Class |
Class I / II |
|
CCT |
3000-6500K |
|
Lifetime |
50000 hours |
|
Photocell base |
with |
|
Installation Spigot |
42/50/60mm |
Product Installation Drawing
Product Maintenance
Attention
1.Please do not disassemble the lamp without permission, or it will be deemed to have waived the warranty service.
2.Please read the manual carefully before installation.
3.Please check everything carefully before use. If any abnormalities occured during use, please contact us immediately.
4.Please make sure the power is turned off before installation.
5.Please turn to professional electrician if any failure.
FAQ
Q1. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 15-20 days for order quantity more than.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about Payment?
A: Bank Transfer (TT), Paypal, Western Union, Trade assurance; 30% the amount should be paid before producing, the balance 70% of the payment should be paid before shipping.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production and delivery.
Q5. Is it OK to print my logo on led light product?
A: Yes, it is available to print yout logo on the led light housing.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
