TECHNICAL
| Technical Parameter | |||||

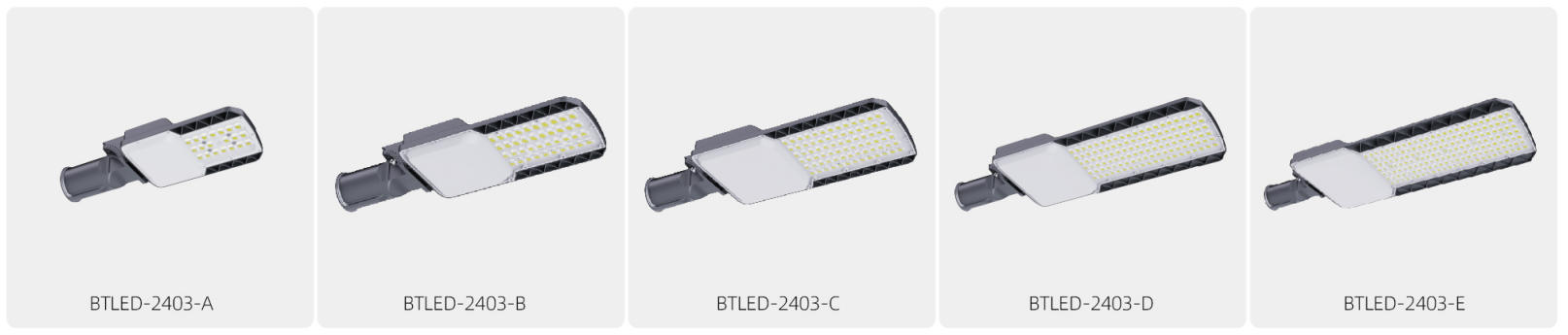

| Model | BTLED-2403A | BTLED-2403B | BTLED-2403C | BTLED-2403D | BTLED-2403E |
| Power | 30W | 50W | 100W | 150W | 200W |
| INPUT VOLTAGE | AC100-277V | ||||
| Frequency range | 50Hz/60Hz | ||||
| Power factor | >0.95 | ||||
| Efficiency | 200Lm/W | ||||
| Lifetime | 50000H | ||||
| CRI | CRI70 | ||||
| CCT | 2200K-6500K | ||||
| IP | IP66 | ||||
| IK | IK09 | ||||
| Working temperature | -30~+50℃ | ||||
| Storage temperature | -20℃~60℃.10%~90%RH | ||||
| Lens Material | PC Lens PC | ||||
| Installation height | 6-8m | 6-8m | 8-10m | 10-12m | 10-12m |
General highlights

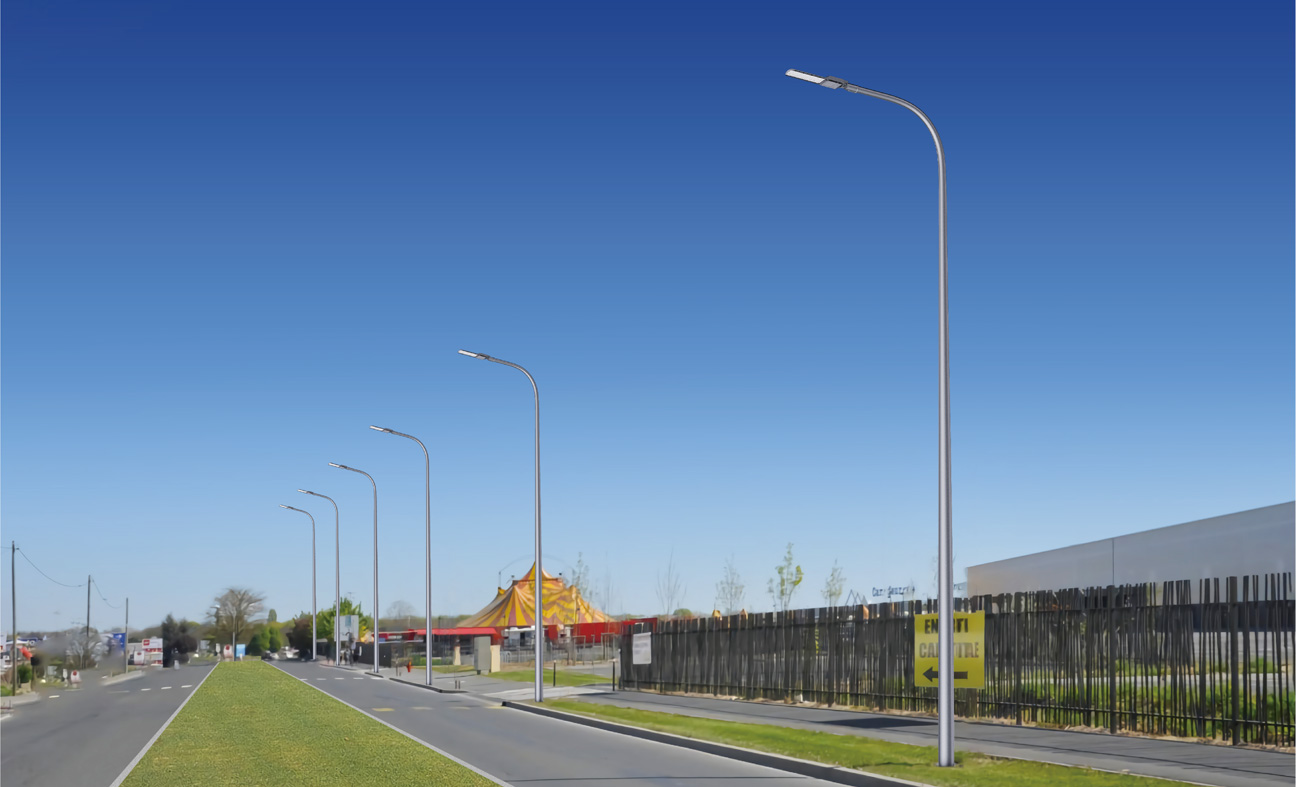

Used for any outdoor lighting places such as roads, squares,scenic spots, etc
Working temperature: -30° C/+50 ° C
Adopting buckle design for easy installation and maintenance
Using high-quality chips
Less light decay, long-lasting and durable
The sleeve adopts a clamping design
Lamp poles with different calibers
Excellent heat dissipation
Optical properties
Different lens arrangements in different areas and installation areas
Uniform light distribution
Modular design of light source for easy replacement
Lumen output (absolute metering): 10800lm-36000lm
Color temperature: 2200K-6500K
Color rendering index:>70
Shell and Finish
Corrosion resistant die cast aluminum casing
Electrostatic powder coating
Protection level: IP66
Impact protection: IK09

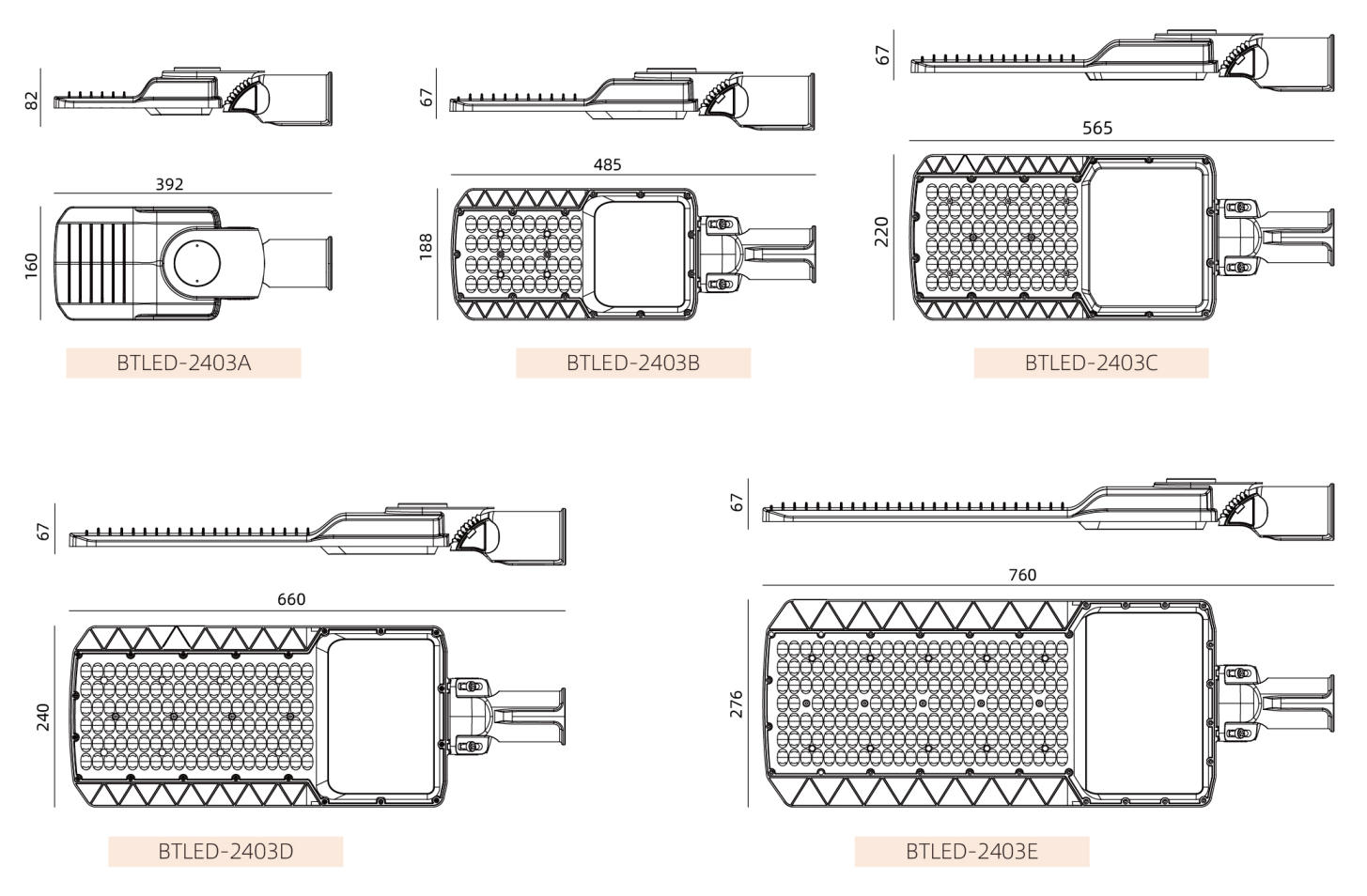

SIZE

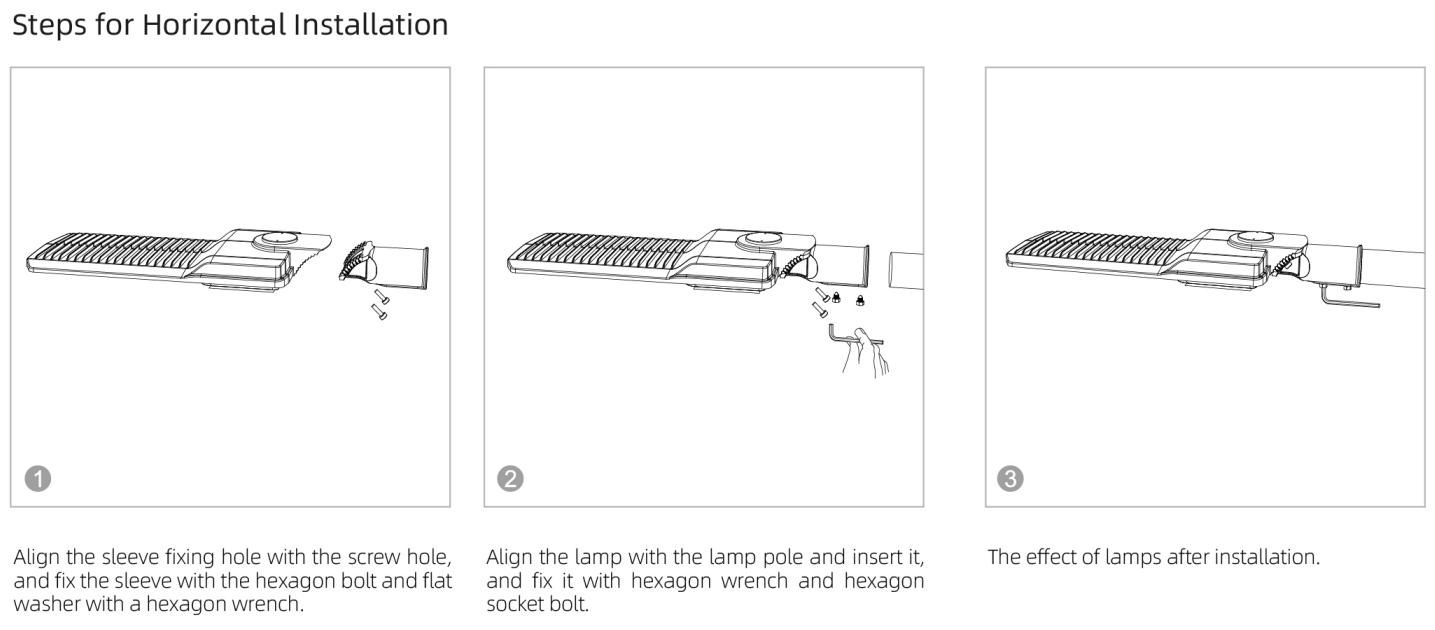

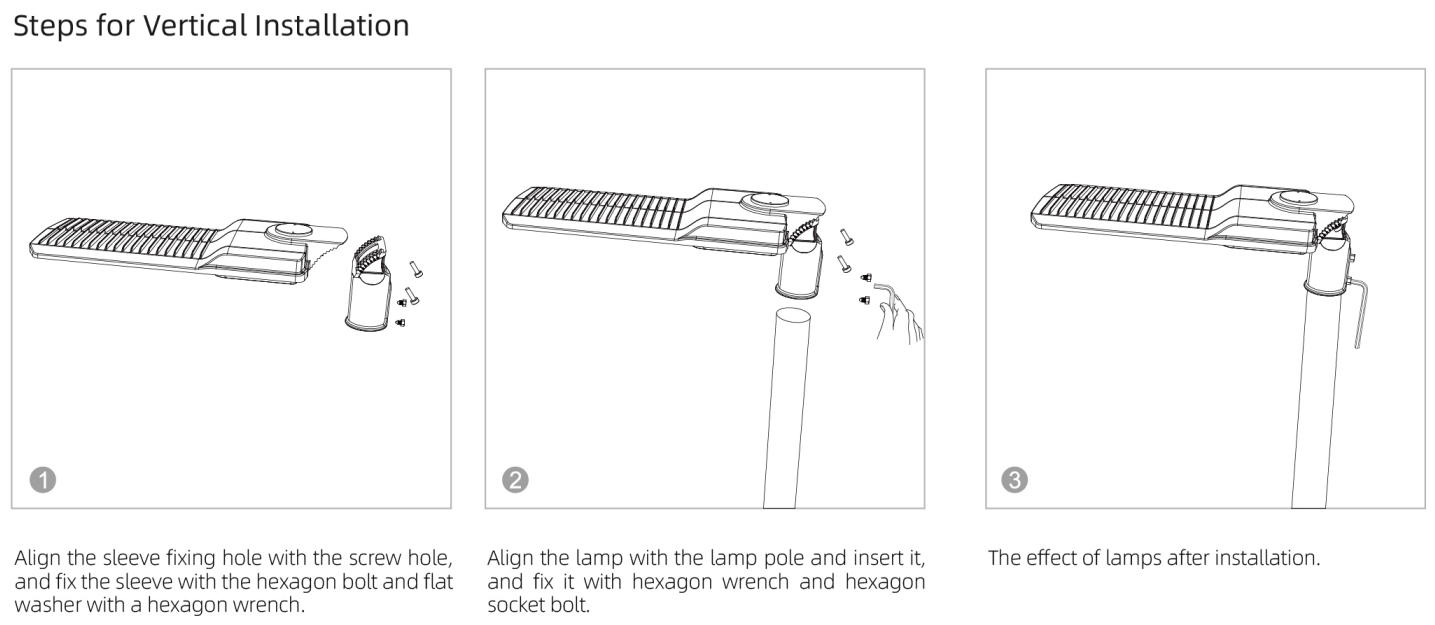

INSTALLATION INSTRUCTIONS
Precautions:
1. The working voltage of this model of lamp is based on the product specification and reference to the product label;
2. All wiring must comply with national installation standards, and alljoints must be properly connected and waterproof treated;
3. Lamp maintenance or replacement requires qualified personnel to replace to avoid danger;
4. The controller modulation should be operated according to the instructions.
