TECHNICAL SPECIFICATIONS
| Model | BTLED-G2302A | BTLED-G2302B |
| Power | 30W-80W | 20W-60W |
| Average lumens | around 80LM/W | around 100LM/W |
| LED Chip | 3030 LED Chip | |
| Chip brand | LUMILEDS/CREE/SAN'AN | |
| Driver | MW/PHILIPS/Inventronics | |
| Power factor | >0.95 | |
| Voltage | AC 90V-305V | |
| SPD | 10KV/20KV | |
| Insulation class | Class I/II | |
| CCT. | 3000-6500k |
| CRI. | ≥70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35℃~+50℃ |
| lifetime | >50000 hours |

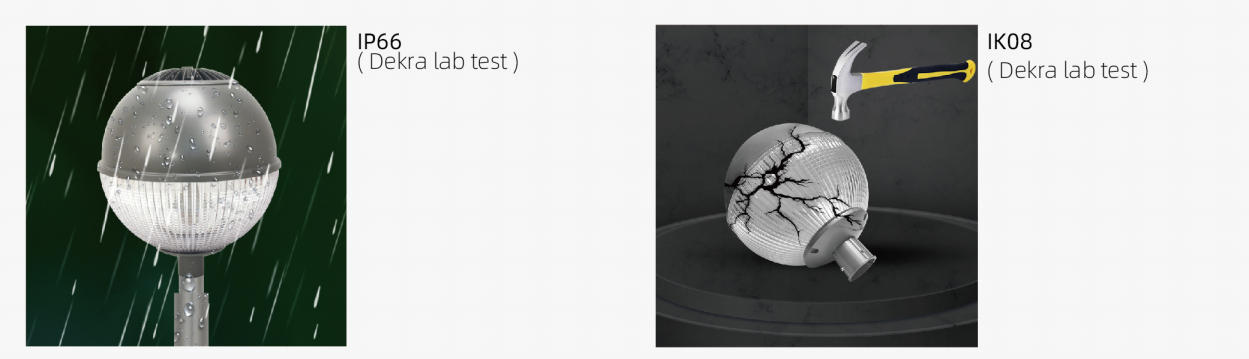

| IP class | IP66 |
| IK class | IK08 |
| Body Material | Diecasting aluminium | |
| Installation spigot | 60/76mm | 50/60mm |

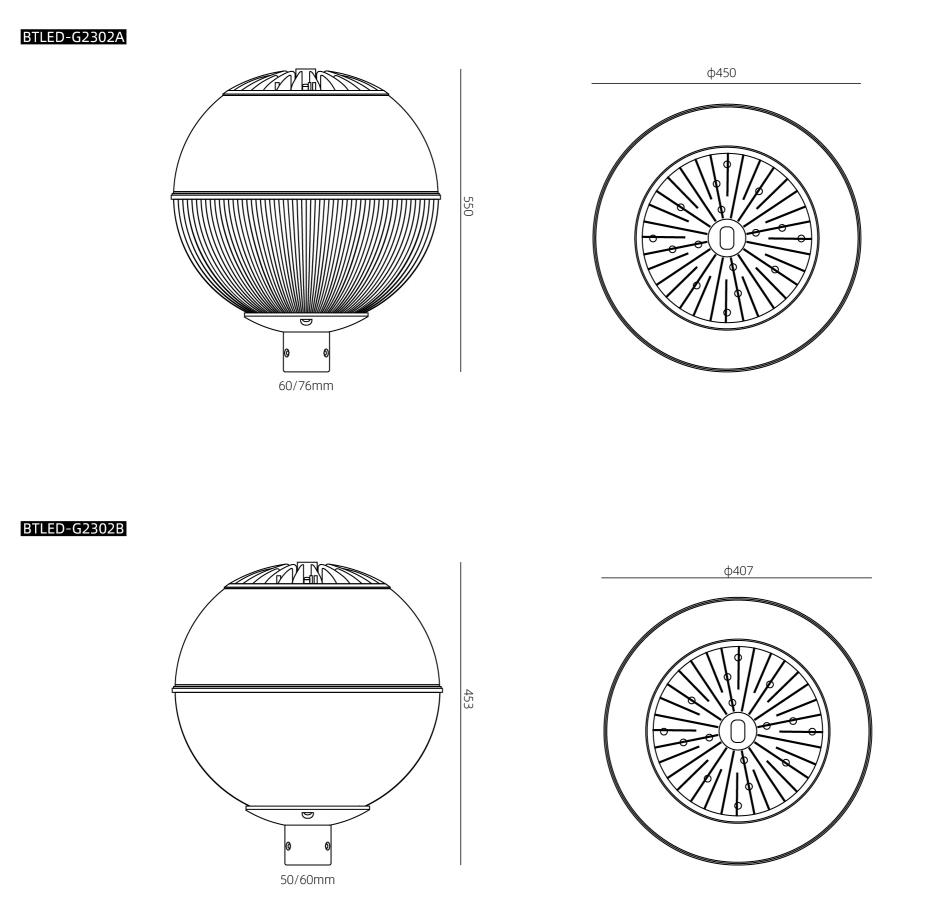

PRODUCT SIZE
| Model | BTLED-G2302A | BTLED-G2302B |
| Product size | 450x450x550mm | 407x407x453mm |
| Packing information | 480x480x570mm | 440x440x470mm |
| EMPTY HOUSING N.W. | 4kg | 3kg |
| EMPTY HOUSING G.W. | 5.2kg | 4kg |
| N.W.for Full Set | 4.6kg | 3.5kg |
| G.W.for Full Set | 5.8kg | 4.5kg |
| 20GP/40HQ quantity | 200PCS/500PCS | 350PCS/880PCS |
