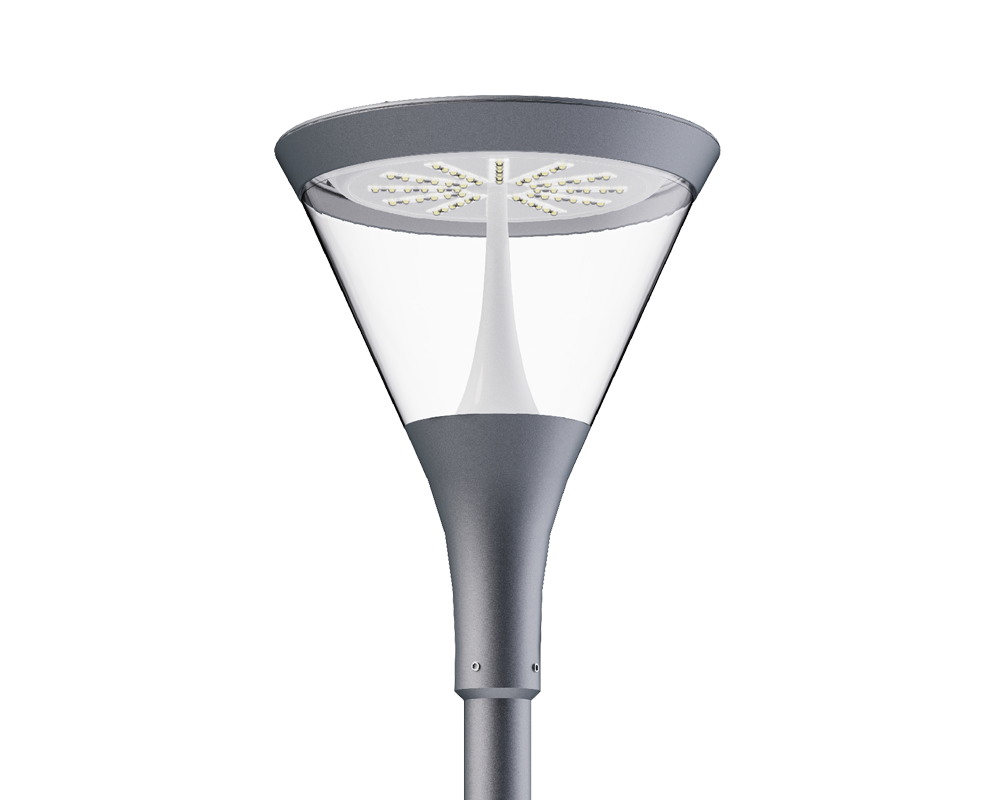

PORSCHE

PORSCHE

LED GARDEN LIGHT

Power: 20W - 90W

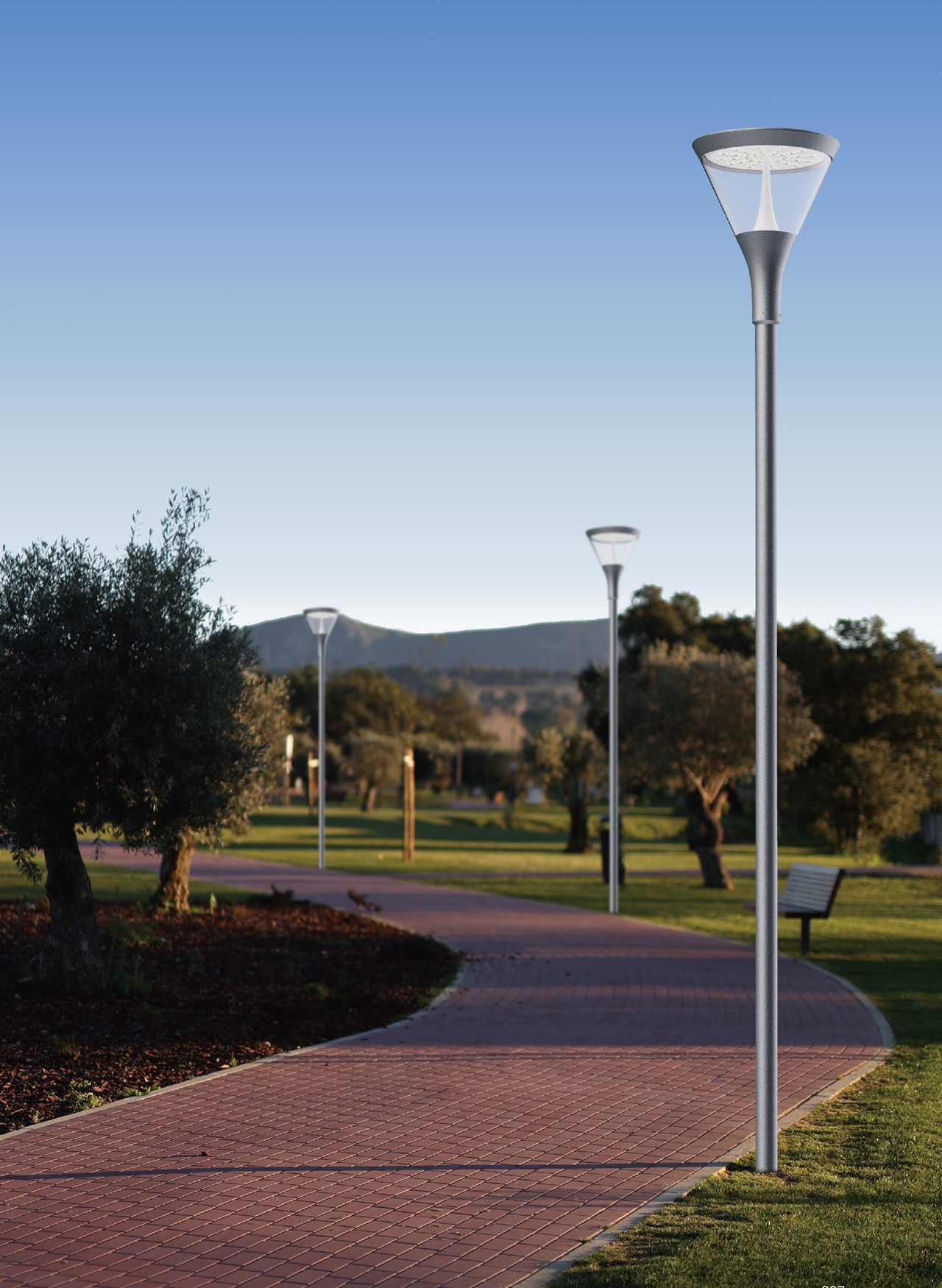

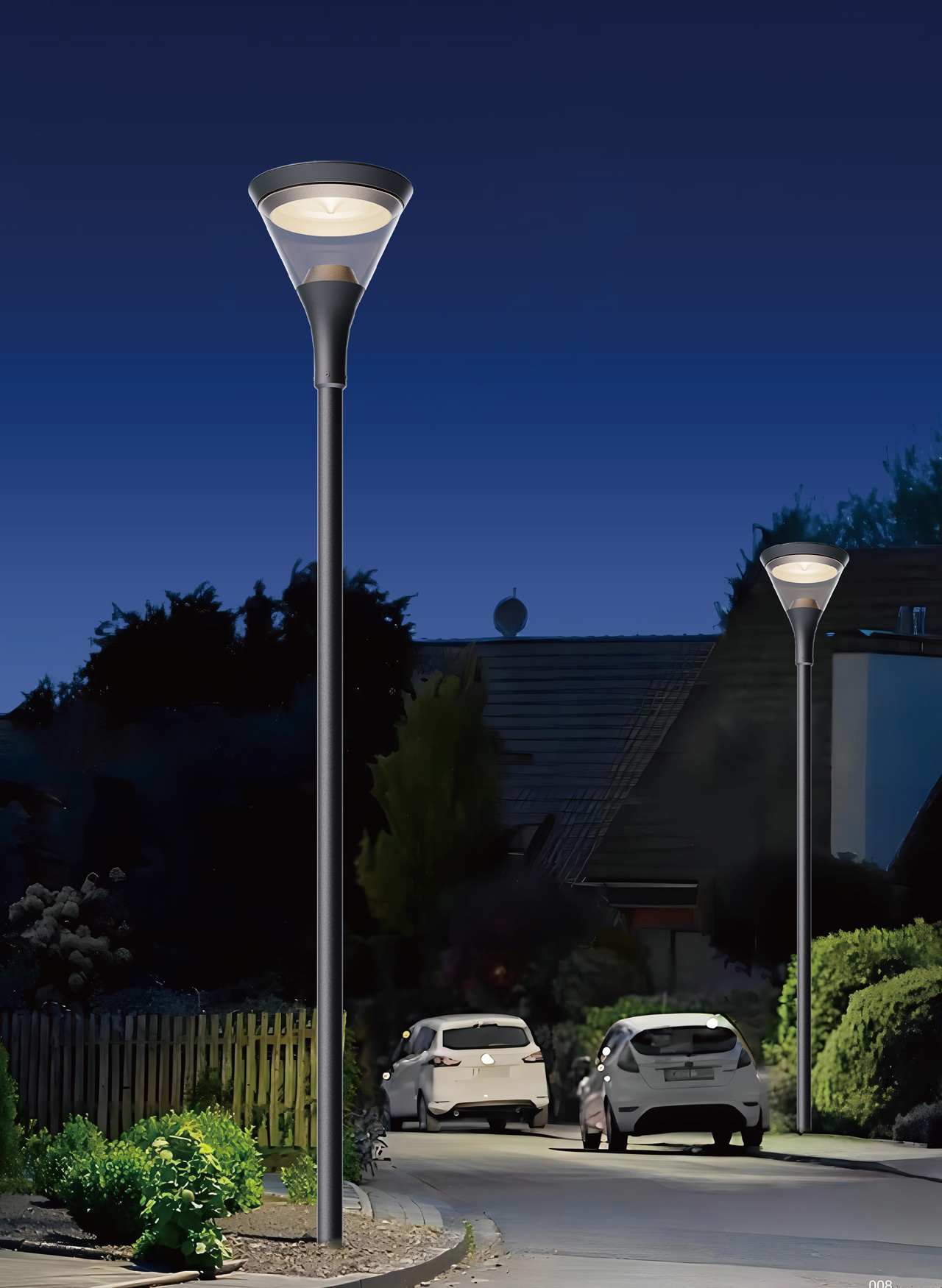

Professional outdoor LED street light for roads, residential streets and urban infrastructure. High efficiency, reliable performance and smart control ready.

20W - 90WPower Range
IP66Ingress Protection
IK08Impact Protection
50000HLifetime
Luminous Efficacy100LM/W
CCT3000 - 6500K
CRI≥70
Voltage90 - 305V
SPD10KV / 20KV
MaterialDie-casting aluminium
Get a Quote Contact Sales

TECHNICAL SPECIFICATIONS


ModelBTLED-G1904ABTLED-G1904B
Power20W-90W20W-90W
50*50mm LENS QTY. (MAX)20PCS20PCS
LED Chip3030 LED Chip:6 in 1 lens
Average lumensaround 100LM/W
Chip brandLUMILEDS/CREE/SAN'AN
DriverMW/MOSO/NVENTRONICS
Power factor>0.95
VoltageAC 90V-305V
SPD10KV/20KV
Insulation classClass I/II


CCT.3000-6500k
CRI.≥70
Optical lensPC lens for Type-1/II/Ⅲ/IV/V
Working Temperature-35C～+50C
lifetime>50000 hours

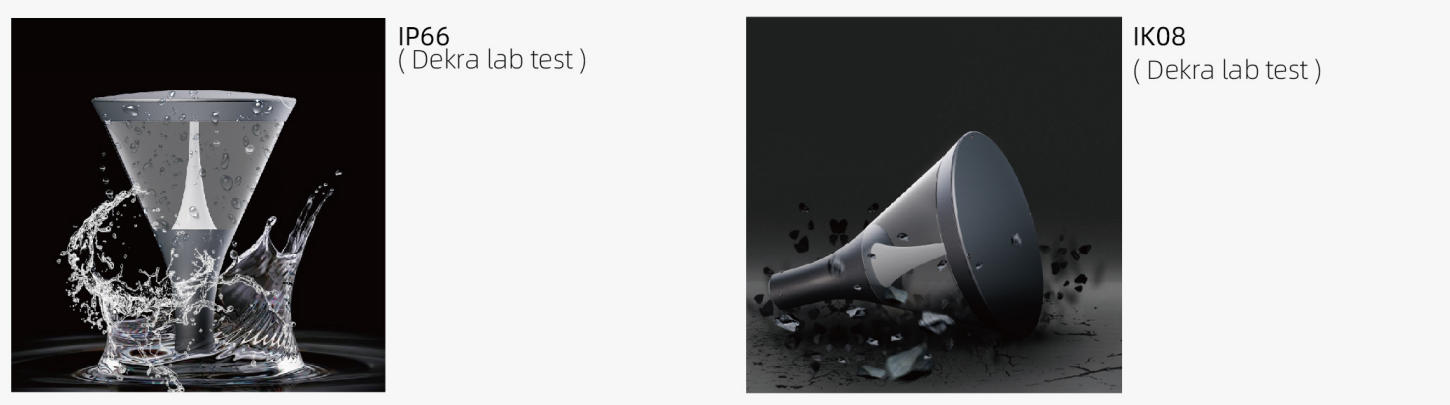

IP classIP66
IK classIK08


Body MaterialDiecasting aluminium
Installation spigot
60/76mm

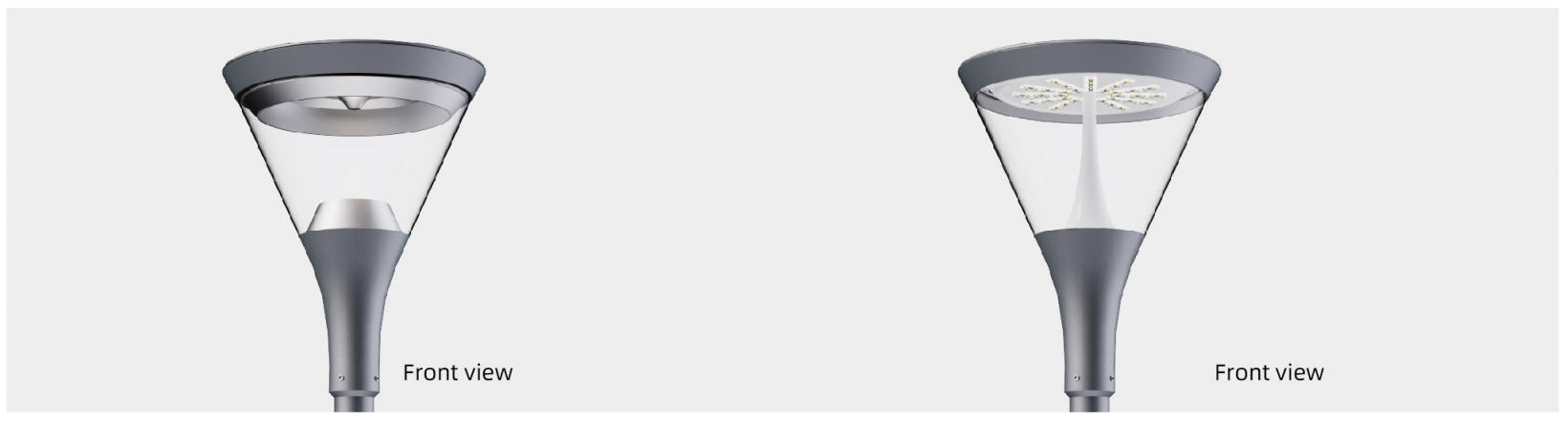

SERIES DISPLAY

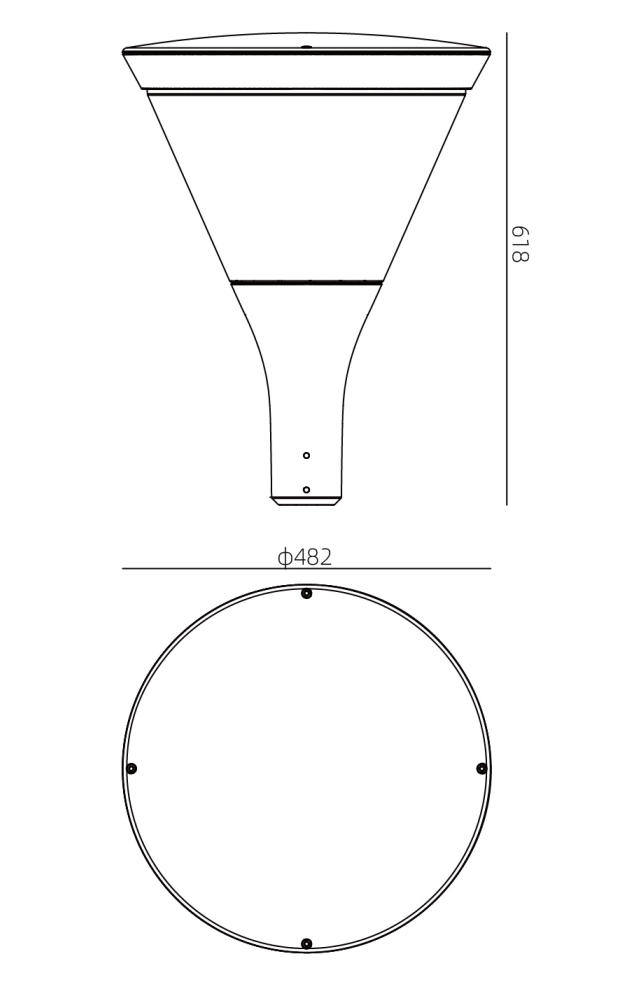

PRODUCT SIZE


ModelBTLED-G1904
Product sizeφ482×618mm
Packing information540*540*690mm
N.W.for Full Set8.5kg
G.W.for Full Set10.5kg
EMPTY HOUSING N.W.7kg
EMPTY HOUSING G.W.9kg
20GP/40HQ quantity128PCS/326PCS
