TECHNICAL SPECIFICATIONS
| Model | BTLED-607A | BTLED-607B | BTLED-607C |
| Power | 20W-90W | 20W-90W | 20W-40W |
| LED Chip | Light source module | ||
| Average lumens | 100LM/W | ||
| Chip brand | LUMILEDS/CREE/SAN'AN | ||
| Driver | MW/PHILIPS/Inventronics/MOSO/DONE | ||
| Power factor | >0.95 | ||
| Voltage | 90-305V | ||
| SPD | 10KV/20KV | ||
| Insulation class | Class I/II | ||
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35°C to +50C |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body | ||
| Installation spigot | According to requirements | According to requirements | According to requirements |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

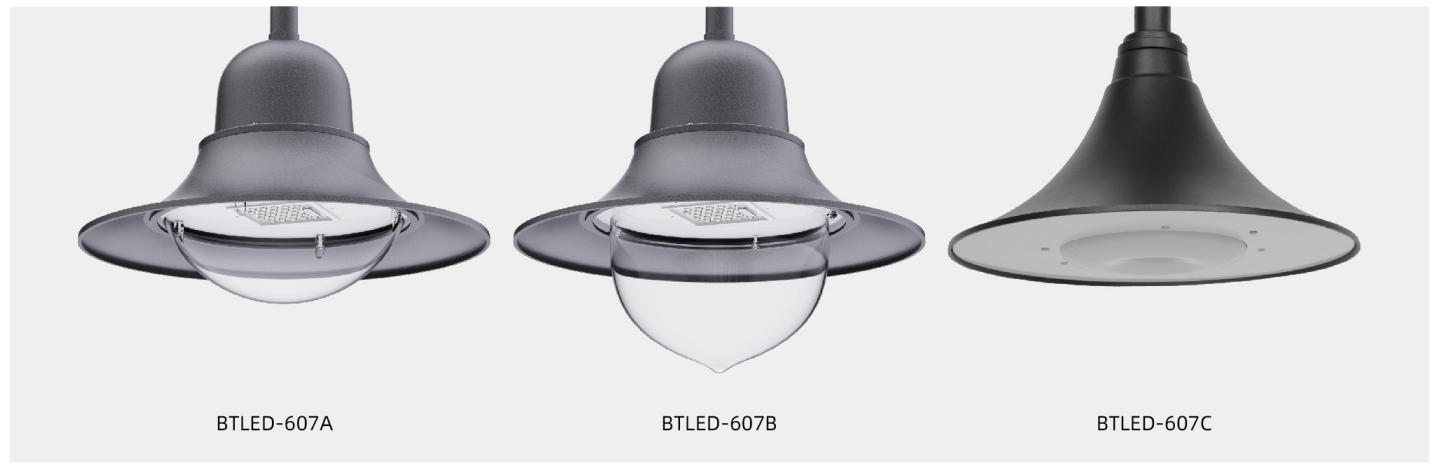

SERIES DISPLAY

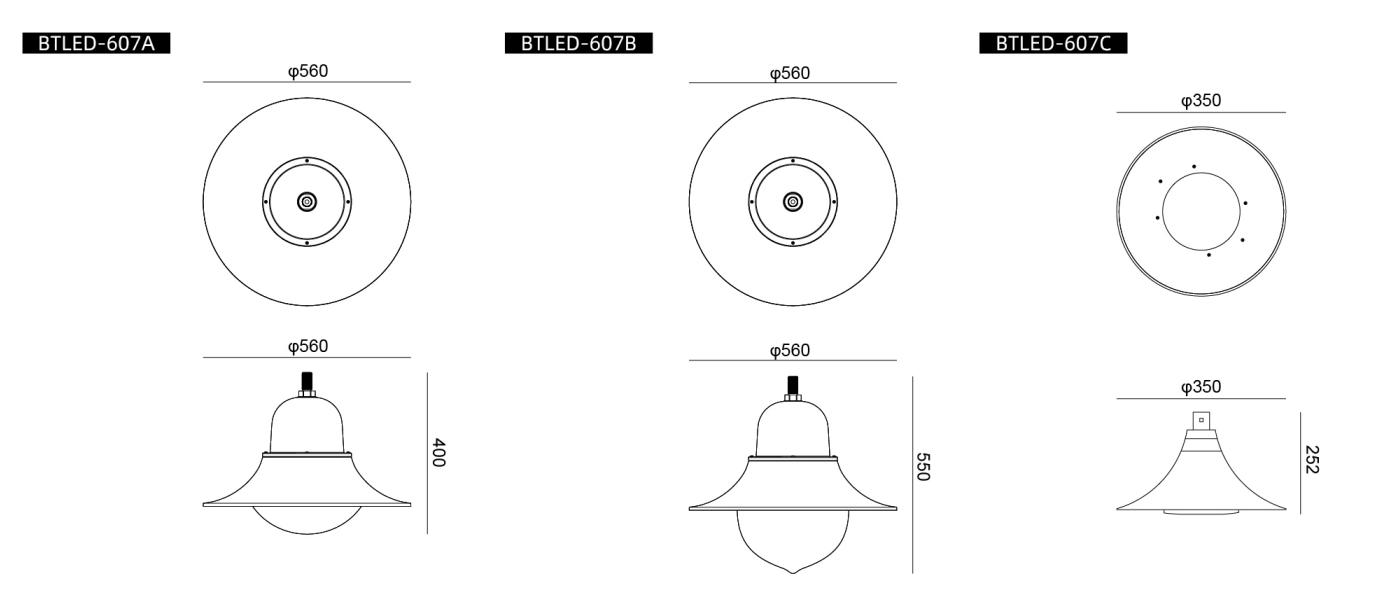

PRODUCT SIZE
| Model | BTLED-607A | BTLED-607B | BTLED-607C |
| Product size | φ560x400mm | φ560×550mm | φ350×252mm |
| Packing information | 480×480x480mm | 480x480×480mm | 300x300x310mm |
| N.W.FOR EMPTY HOUSING | 5kg | 5.4kg | 2.2kg |
| G.W.FOR EMPTY HOUSING | 6kg | 6.4kg | 2.7kg |
| N.W.FOR FULL SET | 6.7kg | 7.1kg | 2.7kg |
| G.W.FOR FULL SET | 7.7kg | 8.1kg | 3.2kg |
| 20GP/40HQ quantity | 250PCS/600PCS | 250PCS/600PCS | 1000PCS/2400PCS |
