TECHNICAL SPECIFICATIONS
| Model | BTLED-606L | BTLED-606S |
| Power | 40W-100W | 20W-80W |
| LED Chip | Light source module | |
| Average lumens | 100LM/W | |
| Chip brand | LUMILEDS/CREE/SAN'AN | |
| Driver | MW/Inventronics/Moso | |
| Power factor | >0.95 | |
| Voltage | 90-305V | |
| SPD | 10KV/20KV | |
| Insulation class | Class I/II | |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35C to+50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body | |
| Installation spigot | 76/60/27mm | 76/60/27mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

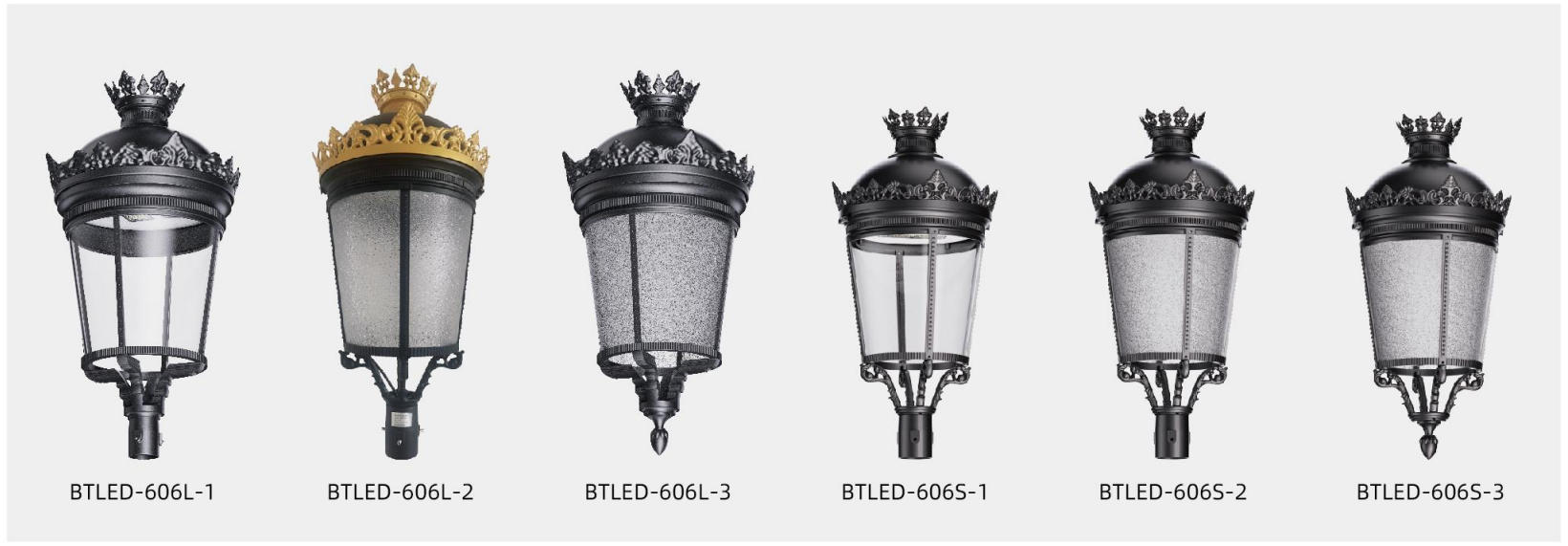

SERIES DISPLAY

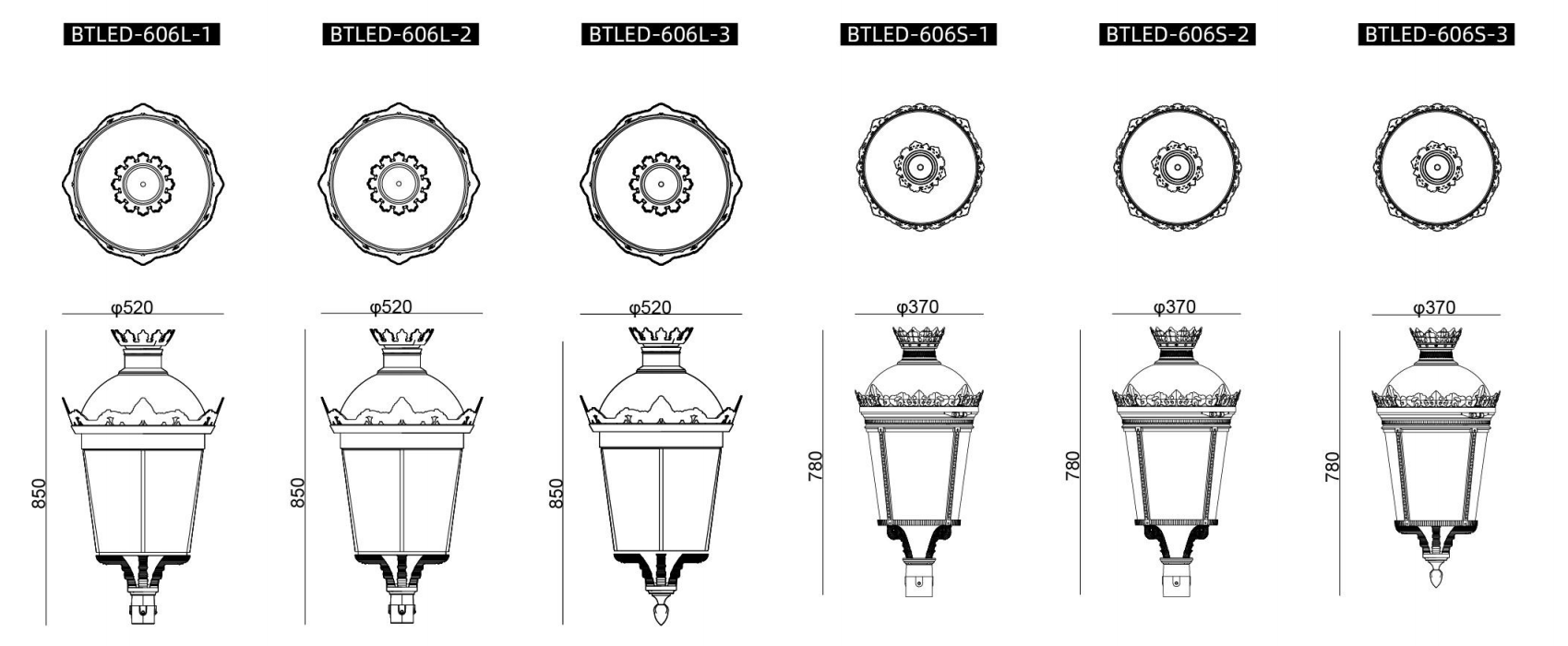

PRODUCT SIZE
| Model | BTLED-606L-1 | BTLED-606L-2 | BTLED-606L-3 | BTLED-606S-1 | BTLED-606S-2 | BTLED-606S-3 |
| Product size | φ520×850mm | φ520x850mm | φ520×850mm | φ370x780mm | φ370x780mm | φ370x780mm |
| Packing information | 460x470x680mm | 460x470x680mm | 460x470x800mm | 390x390×820mm | 390x390x820mm | 390x390x820mm |
| EMPTY HOUSING N.W. | 8kg | 8.4kg | 8kg | 4kg | 4kg | 4kg |
| EMPTY HOUSING G.W. | 10kg | 10.4kg | 10kg | 5kg | 5kg | 5kg |
| N.W.COMPLETE SET | 10.5kg | 10.9kg | 10.5kg | 5.5kg | 5.5kg | 5.5kg |
| G.W.COMPLETE SET | 12.5kg | 12.9kg | 12.5kg | 6.5kg | 6.5kg | 6.5kg |
| 20GP/40HQ quantity | 180PCS/430PCS | 180PCS/430PCS | 150PCS/380PCS | 225PCS/550PCS | 225PCS/550PCS | 225PCS/550PCS |
