TECHNICAL SPECIFICATIONS
| Model | BTLED-G2301 |
| Power | 20W-60W |
| 50*50mm LENS QTY. (MAX) | 4PCS |
| LED Chip | 3030 LED Chip:12 in 1 lens |
| Average lumens | around 120LM/W |
| Chip brand | LUMILEDS/CREE/SAN'AN |
| Driver | MW/PHILIPS/Inventronics |
| Power factor | >0.95 |
| Voltage | 90V-305V |
| Insulation class | Class I/Il |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-1/II/Ⅲ/IV/V |
| Working Temperature | -40'℃ to 60'℃ |
| lifetime | >50000 hours |
| IP class | IP66 |
| IK class | ≥IKO8 |
| Body Material | Diecasting aluminium |
| Installation spigot | 60/75mm |

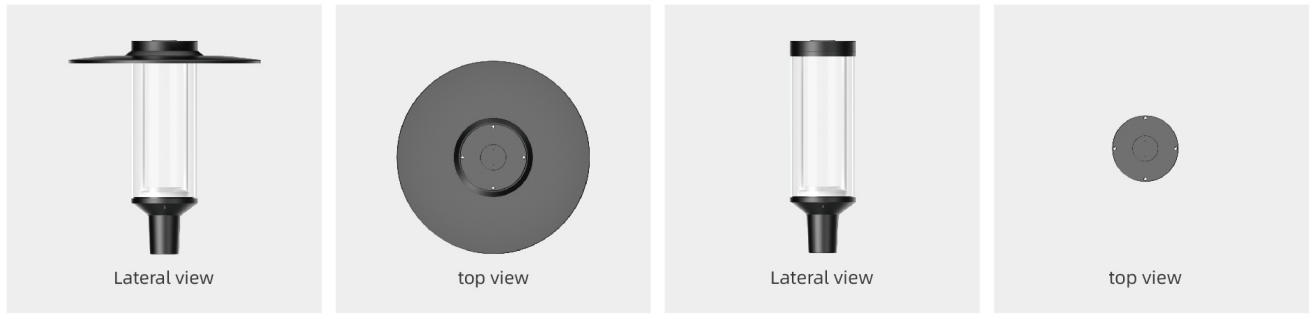

SERIES DISPLAY

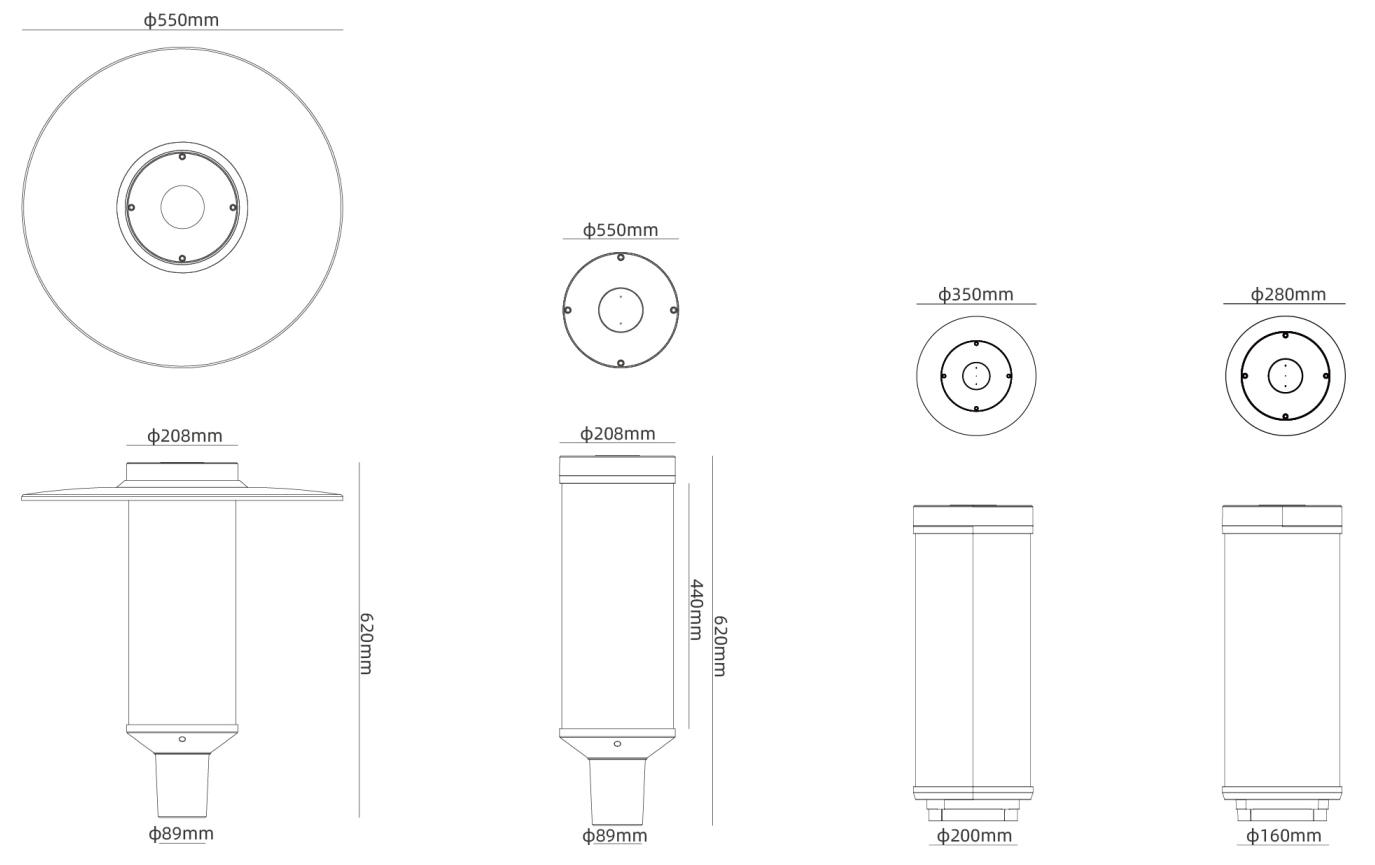

PRODUCT SIZE
| Model | BTLED-G2301 |
| Product size | 550×550×620mm |
| Packing information | 560×560×630mm |
| EMPTY HOUSING N.W. | 4.1kg |
| EMPTY HOUSING G.W. | 5.1kg |
| N.W. | 5.5kg |
| G.W. | 6.5kg |
| 20GP/40HQ quantity | 130PCS/330PCS |
