TECHNICAL SPECIFICATIONS
| Model | BTLED-1603A | BTLED-1603B |
| Power | 20W-100W | 20W-60W |
| LED Chip | LED module | |
| Average lumens | 120LM/W | |
| Chip brand | LUMILEDS/CREE/SAN'AN | |
| Driver | PHILIPS /INVENTRONICS/SOSEN | |
| Power factor | >0.95 | |
| Voltage | 90-305V | |
| SPD | 10KV/20KV | |
| Insulation class | Class I/II | |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/IⅢ/IV /V |
| Working Temperature | -35C to +50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body | |
| Installation spigot | 76/60/27mm | 60/27mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

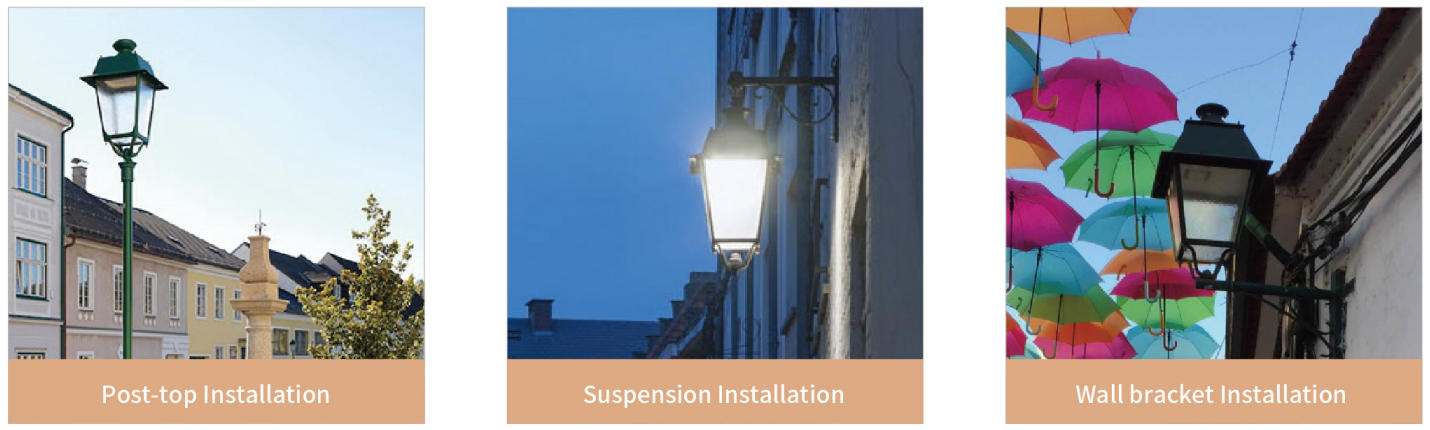

INSTALLATION WAY

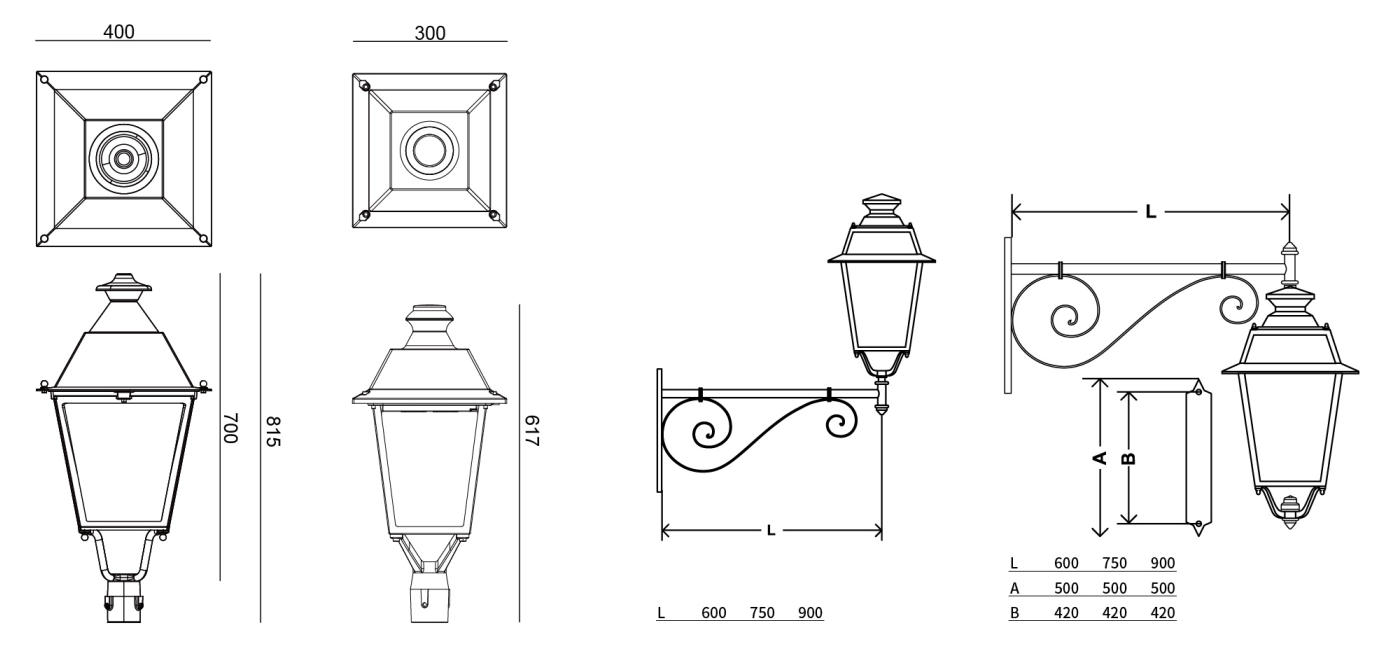

PRODUCT SIZE
| Model | BTLED-1603A | BTLED-1603B |
| Product size | 400x400x815mm | 300x300x638mm |
| Packing information | 410x410x640mm | 320x320x470mm |
| EMPTY HOUSING N.W. | 5kg | 3.2kg |
| EMPTY HOUSING G.W. | 6kg | 4.0kg |
| N.W. | 6.5kg | 3.8kg |
| G.W. | 7.5kg | 4.6kg |
| 20GP/40HQ quantity | 250PCS/600PCS | 600PCS/1450PCS |

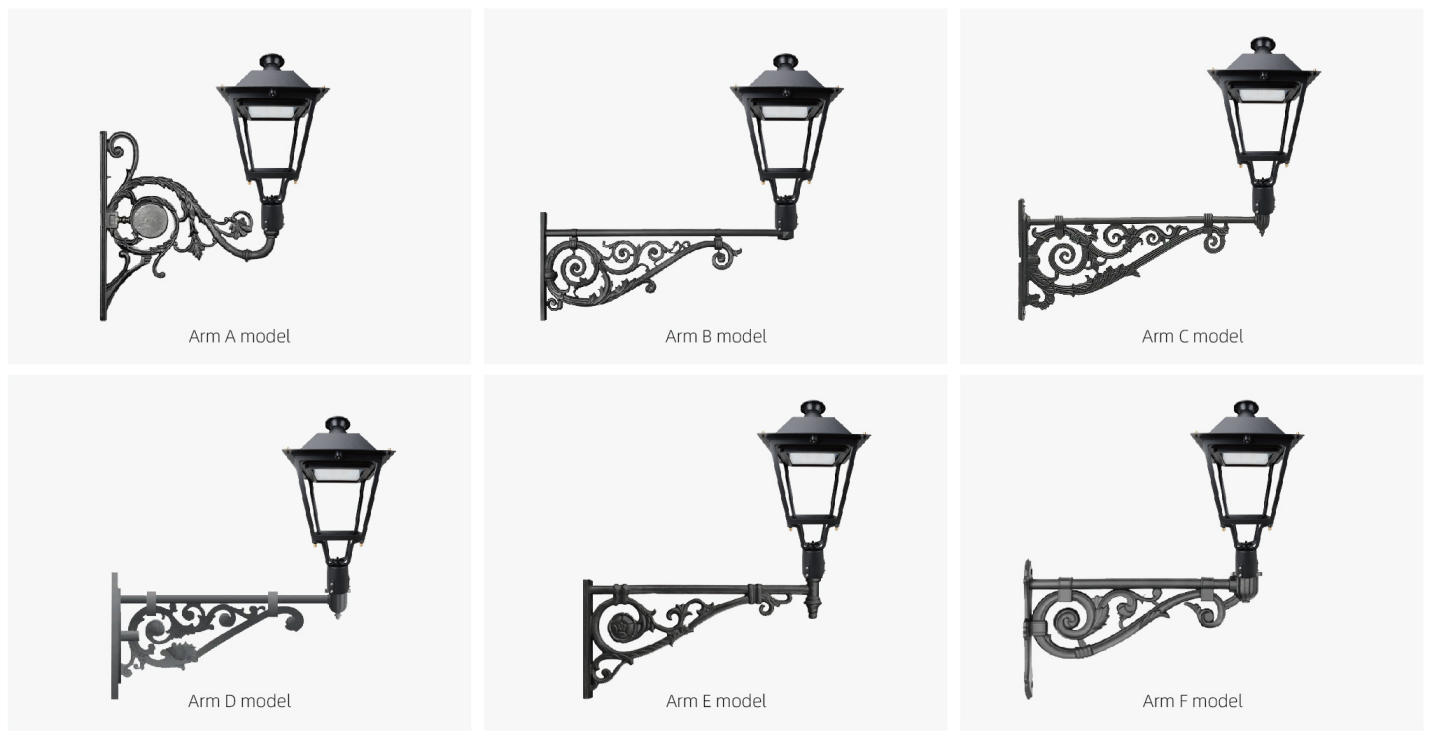

ACCESSORIES DISPLAY
