TECHNICAL SPECIFICATIONS
| Model | BTLED-G2402-A | BTLED-G2402-B | BTLED-G2402-C |
| Power | 30W-100W | 30W-100W | 30W-100W |
| LED Chip | Light source module | ||
| Average lumens | 100LM/W | ||
| Chip brand | LUMILEDS/CREE/SAN'AN | ||
| Driver | MW/INVENTRONICS/MOSO | ||
| Power factor | >0.95 | ||
| Voltage | 90-305V | ||
| SPD | 10KV/20KV | ||
| Insulation class | Class I/II | ||
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35C to +50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body |
| Installation spigot | 76mm |
Remark :
1. Driver is dimmable(1-10V or DALl) or non-dimmable optional
2. Total Lumen is according to project's requirements

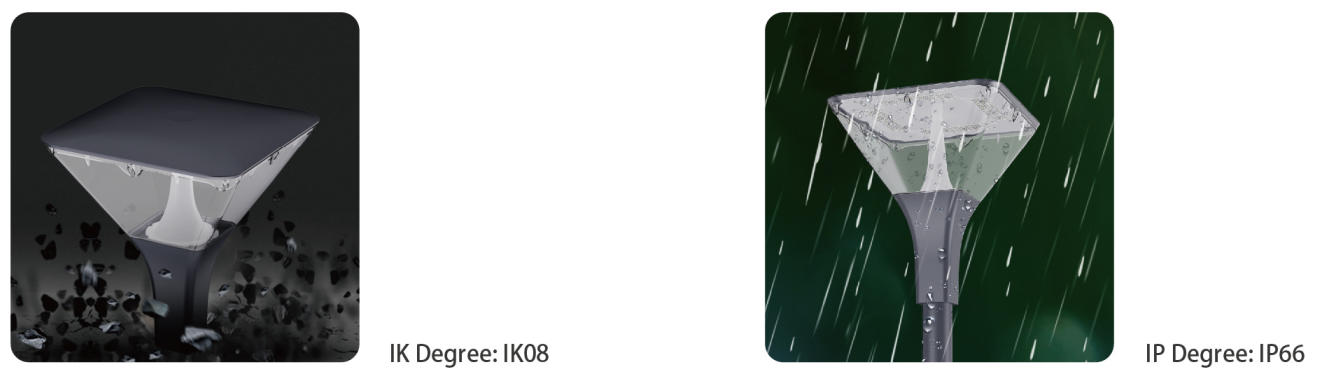

PROTECTION LEVEL

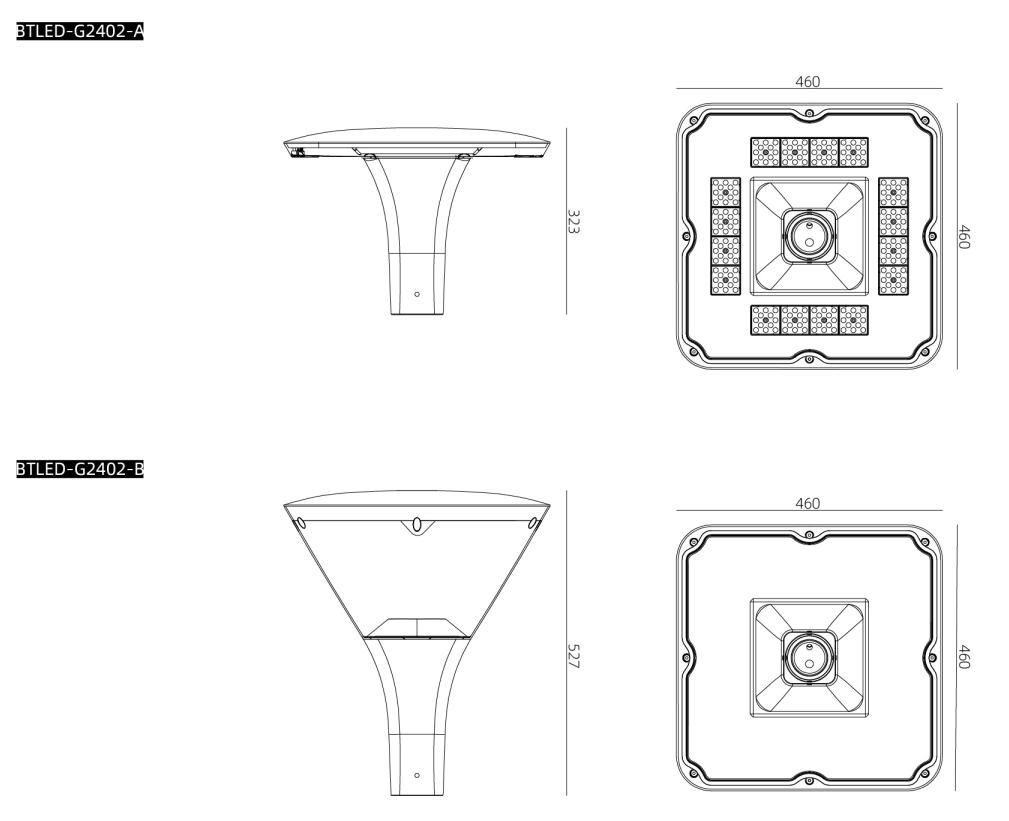

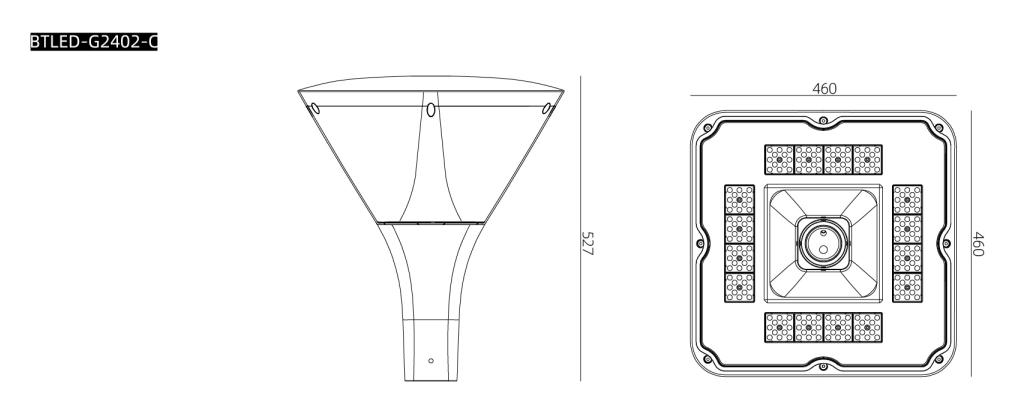

PRODUCT SIZE
