TECHNICAL SPECIFICATIONS
| Model | BTLED-G1801A/B/C/D/E |
| Power | 30W-80W |
| LED Chip | Light source module |
| Average lumens | 100LM/W |
| Chip brand | LUMILEDS/CREE/SAN'AN |
| Driver | MW/INVENTRONICS/MOSO |
| Power factor | >0.95 |
| Voltage | 90-305V |
| SPD | 10KV/20KV |
| Insulation class | Class I/II |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/Ⅲ/IV/V |
| Working Temperature | -35C to +50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body |
| Installation spigot | 76/60mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements
PROTECTION LEVEL

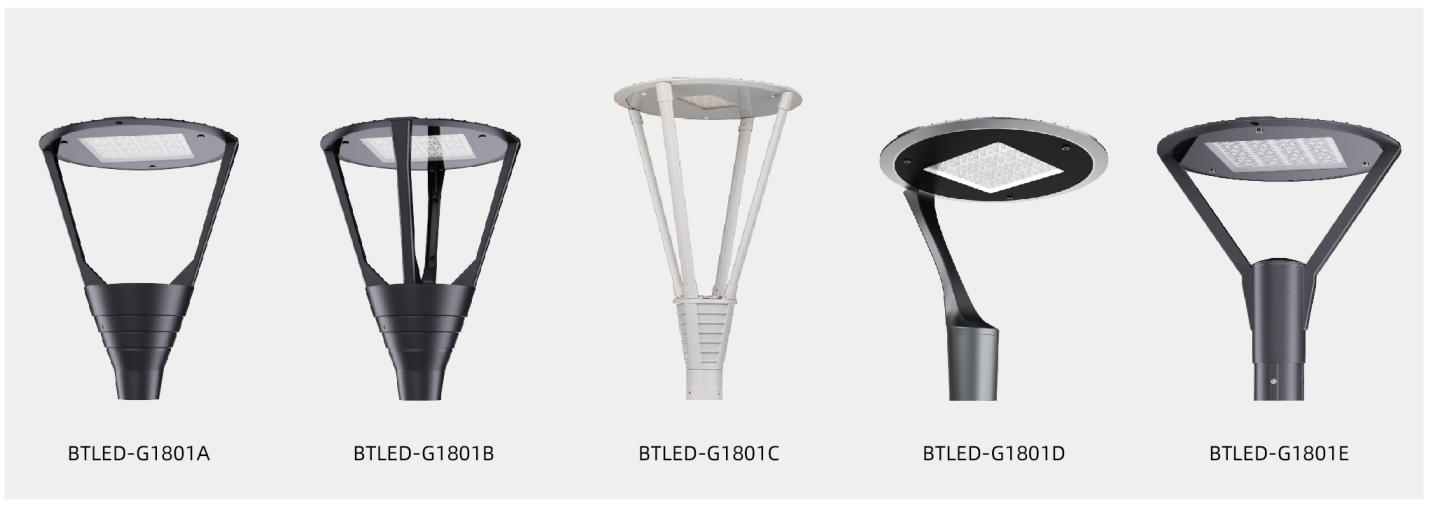

SERIES DISPLAY

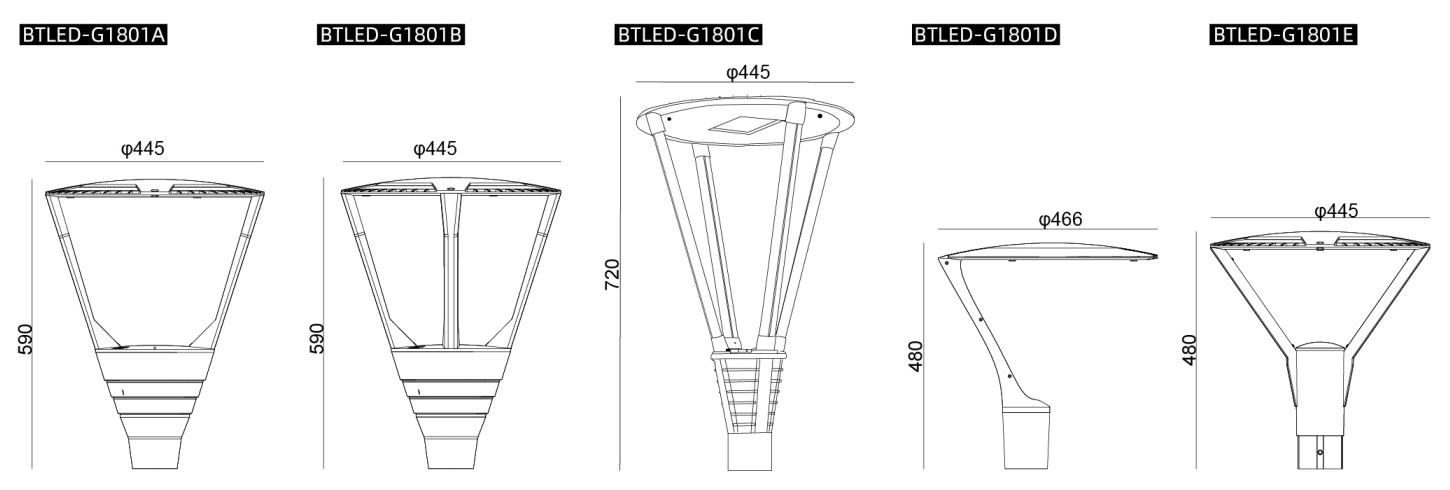

PRODUCT SIZE
| Model | BTLED-G1801A | BTLED-G1801B | BTLED-G1801C | BTLED-G1801D | BTLED-G1801E |
| Product size | 445x445x590mm | 445x445x590mm | 445x445x720mm | 445x445×480mm | 445x445x480mm |
| Packaging size | 460x460x620mm | 460x460x620mm | 460x460x750mm | 460x460x510mm | 460x460x510mm |
| EMPTY HOUSING N.W. | 8.1kg | 8.5kg | 8.5kg | 6.5kg | 8.5kg |
| EMPTY HOUSING G.W. | 9.8kg | 10kg | 10kg | 7.5kg | 7.3kg |
| N.W. | 7.1kg | 7.5kg | 7.5kg | 5.5kg | 6.5kg |
| G.W. | 8.8kg | 9kg | 9kg | 6.5kg | 7.2kg |
| 20GP/40HQ quantity | 215/500 | 215/500 | 175/410 | 250/600 | 250/600 |
