TECHNICAL SPECIFICATIONS
| Model | BTLED-G1905 |
| Power | 20W-100W |
| 50*50mm LENS QTY. (MAX) | 9PCS |
| LED Chip | 3030/5050 Leds |
| Average lumens | around 100 LM/W |
| Chip brand | LUMILEDS/CREE/SAN'AN |
| Driver | MW/MOSO/INVENTRONICS |
| Power factor | >0.95 |
| Voltage | 90V-305V |
| SPD | 10KV/20KV |
| Insulation class | Class I/Il |
| CCT. | 3000-6500k |
| CRI. | >70 |
| Optical lens | PC lens for Type-I/II/I/IV/V |
| Working Temperature | -35℃ to 50℃ |
| lifetime | >50000 hours |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting aluminium |
| Installation spigot | 60mm |

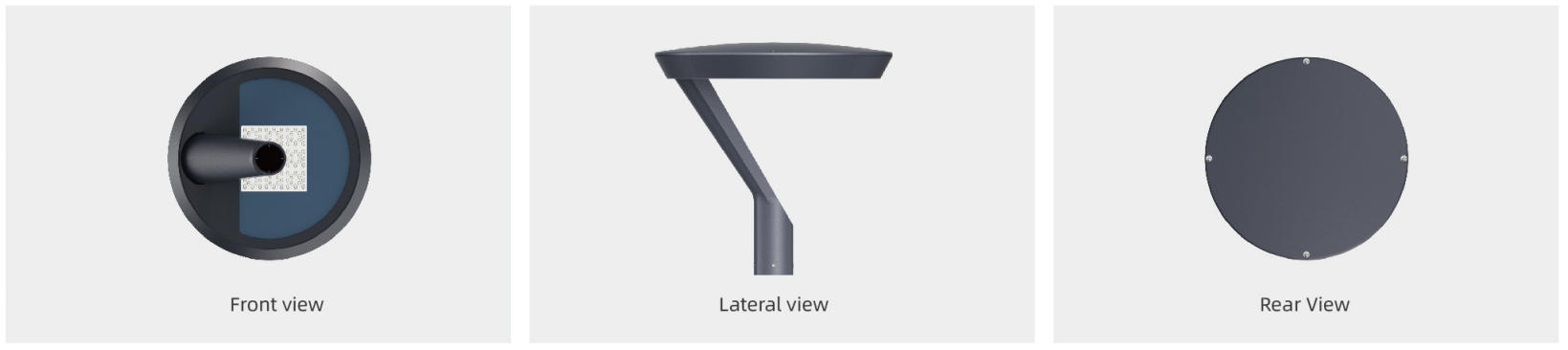

MULTI ANGLE DISPLAY

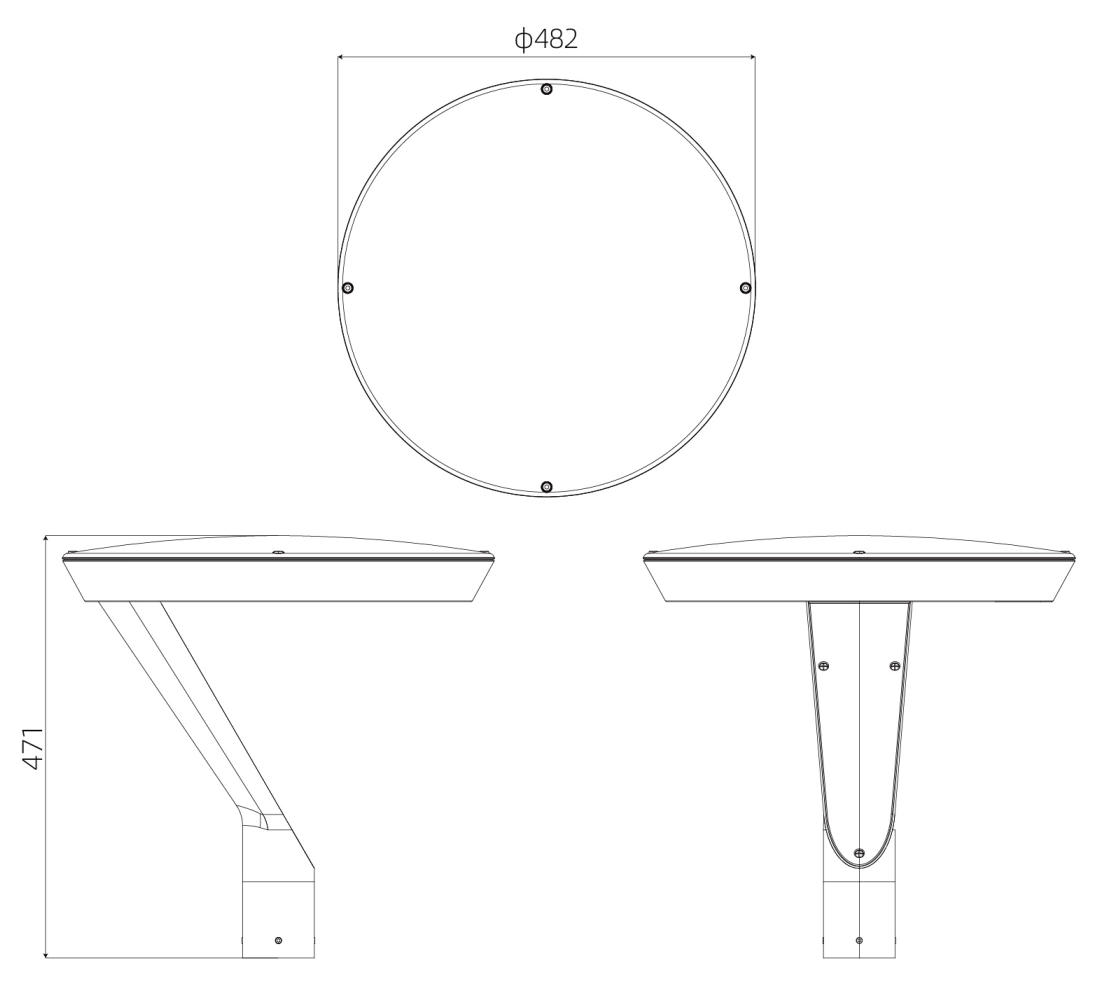

PRODUCT SIZE
| Model | BTLED-G1905 |
| Product size | φ482×471mm |
| Packing information | 540x540×540mm |
| N.W.for Full Set | 9.4KG |
| G.W.for Full Set | 11KG |
| EMPTY HOUSING N.W. | 8KG |
| EMPTY HOUSING G.W. | 9.6KG |
| 20GP/40HQ quantity | 170PCS/420PC |
