TECHNICAL SPECIFICATIONS
| Model | BTLED-G2403 |
| Power | 30W-100W |
| LED Chip | Light source module |
| Average lumens | 100LM/W |
| Chip brand | LUMILEDS/CREE/SAN'AN |
| Driver | MW/INVENTRONICS/MOSO |
| Power factor | >0.95 |
| Voltage | 90-305V |
| SPD | 10KV/20KV |
| Insulation class | Class I/II |
| CCT. | 2700-6500k |
| CRI. | >70 |
| Optical lens | PC lens for 120° |
| Working Temperature | -350C to+50℃ |
| lifetime | >50000H |
| IP class | IP66 |
| IK class | ≥IK08 |
| Body Material | Diecasting alu.Body |
| Installation spigot | 76mm |
Remark:
1. Driver is dimmable(1-10V or DALI) or non-dimmable optional
2. Total Lumen is according to project's requirements

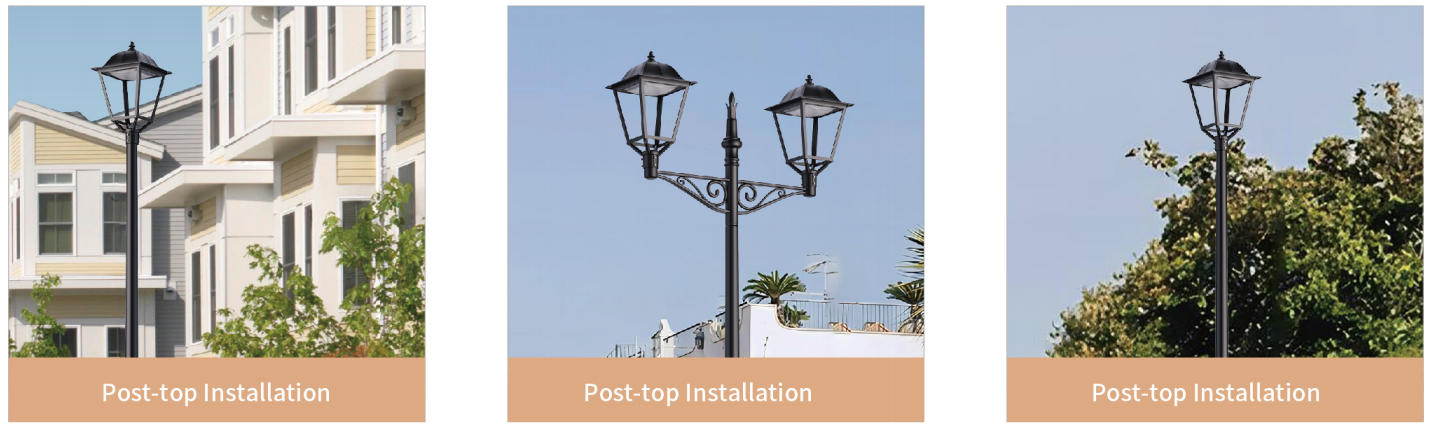

INSTALLATION WAY

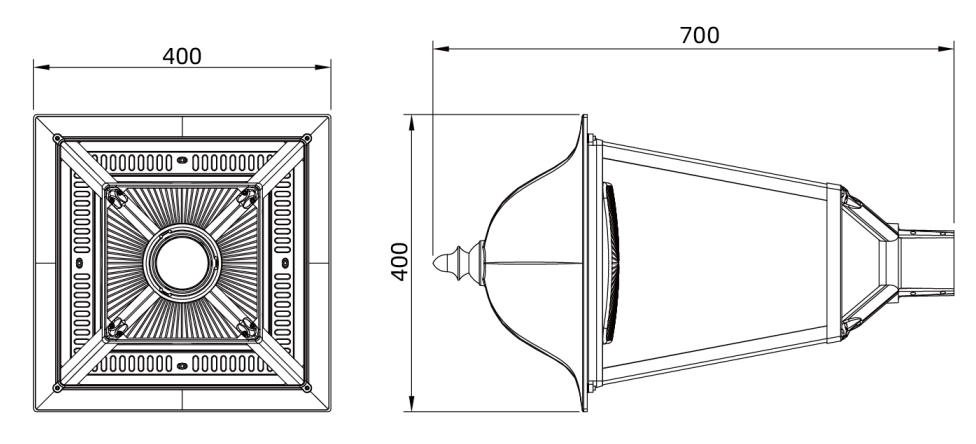

PRODUCT SIZE
| Model | BTLED-G2403 |
| Product size | 400x400x700mm |
| Packing information | 450x450x690mm |
| EMPTY HOUSING N.W. | 5.1kg |
| EMPTY HOUSING G.W. | 6.5kg |
| N.W. | 6kg |
| G.W. | 7.4kg |
| 20GP/40HQ quantity | 210PCS/420PCS |

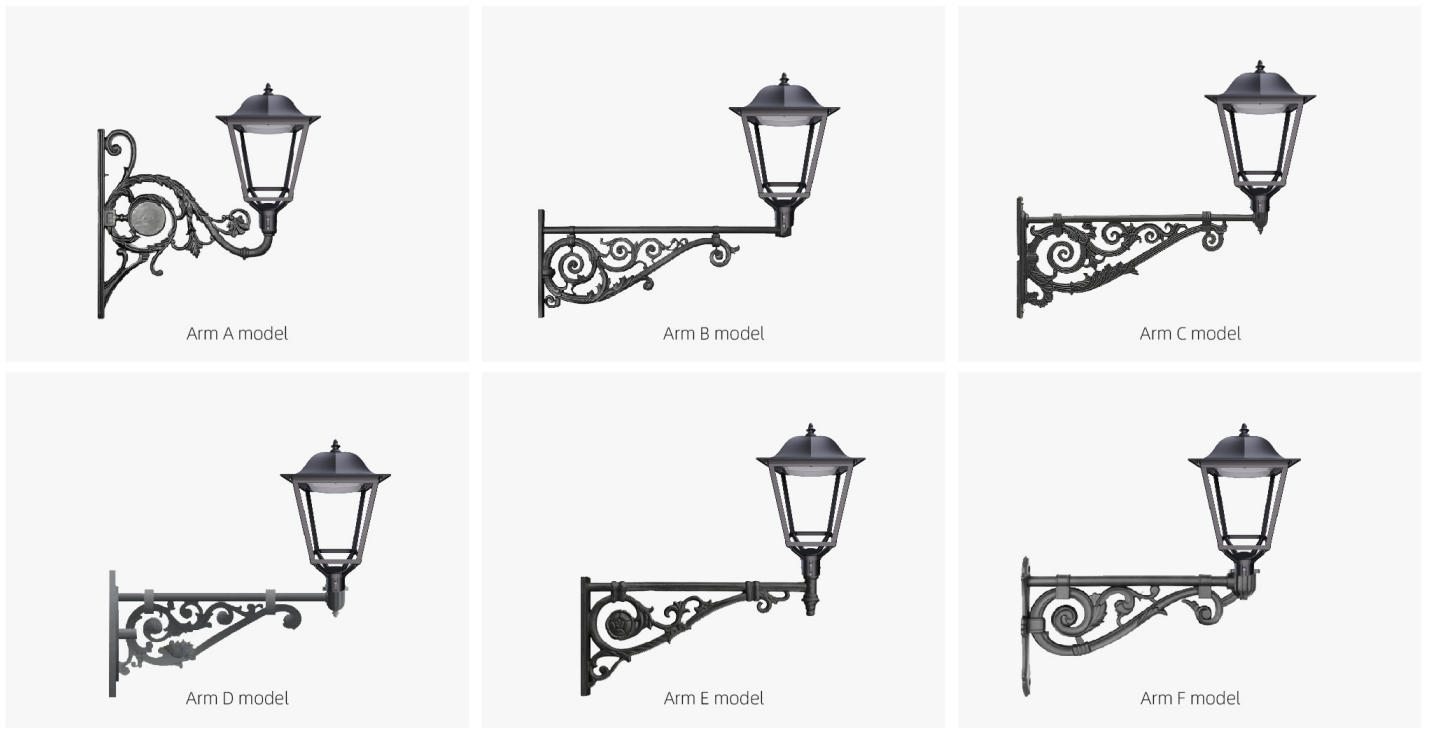

ACCESSORIES DISPLAY
